110 or 220 VAC 30A 6 Output Timer
10798  Description

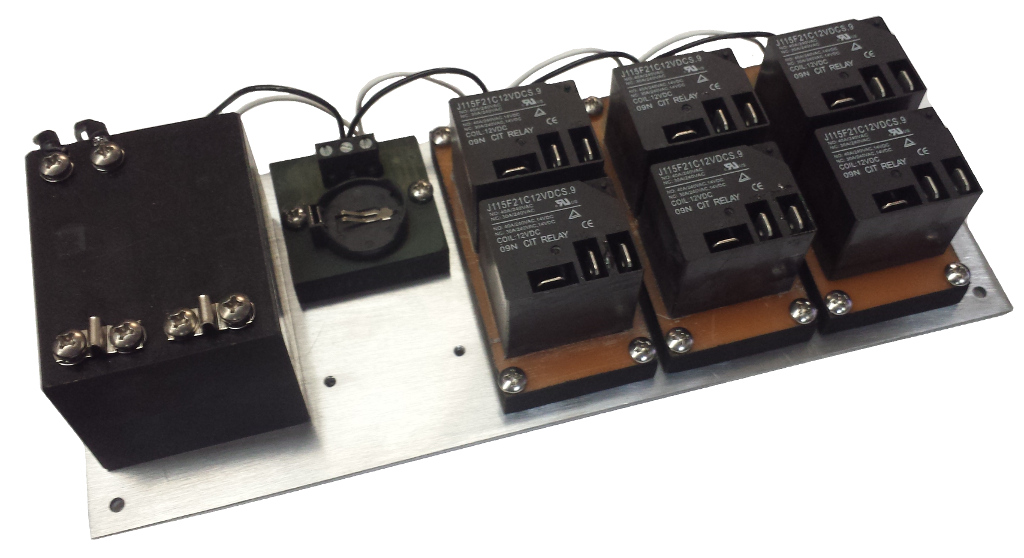

ProductModel 10798 is a 110 or 220 VAC interval timer. The six mechanical output relays can switch AC or DC loads up to 30A. The minimum interval time is 100 ms (0.1s). Interval sequences can be started when the timer is powered or using the optional input expander. This package includes the power supply, controller, six 30A relay output, and aluminum mounting plate. The input expander is not included. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then sent to an infrared remote programmer, model 9245, through the USB interface. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
110,220 AC
Output
Number of Outputs Switches Current Capacity Type
6 AC or DC 30A Mechanical
Time
Time Base Weekly Clock Clock Source
100ms Yes Crystal
Features
External Inputs Battery Backup Max Intervals
5 Yes 60

Pricing
Quantity Price USD
1 $ 165.00
5 $ 143.00
10 $ 135.00
50 $ 117.00
100 $ 110.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images
Dimensions & Layout
Dimensions & Layout
