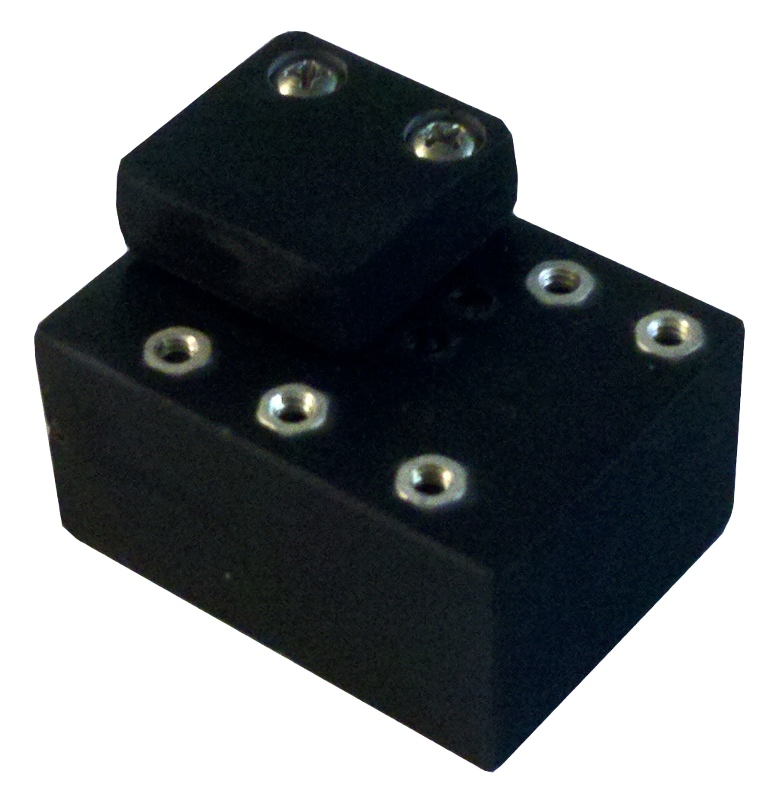

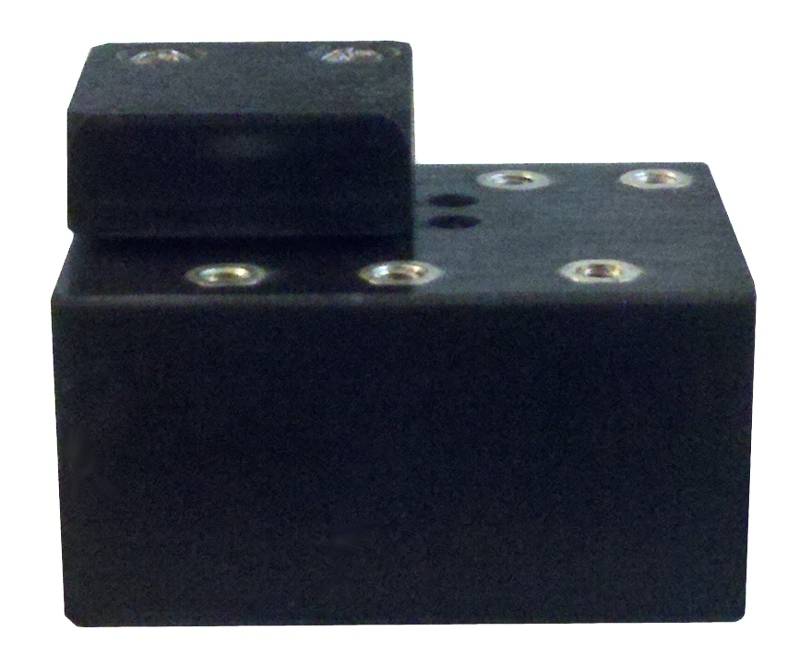

 Model 10728 is a 110 or 220 VAC timer with backup battery. The 10728 timer is able to switch AC or DC loads up to 10A. Fully programmable ON/OFF times up to 30 different intervals. Minimum time resolution is 100 milliseconds. The encapsulated mechanical relay output is isolated from the supply voltage and can switch loads up to 10A. The included 3V backup battery maintains real time clock when supply voltage is not present. The battery is encapsulated to prevent environmental damage.
This timer is fully programmable using the Phenix Infrared Programming system. Intervals are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then transferred into an infrared remote programmer, model 9245, through the USB interface. The intervals are then transmitted from the remote to the infrared input on the timer.
Factory programming available, please call for details. |
|
|
| Operating Voltage |
|
| Output |
| 1 |
AC or DC |
10A |
Mechanical |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
27.00 |
| 5 |
$
|
24.00 |
| 10 |
$
|
22.00 |
| 50 |
$
|
20.00 |
| 100 |
$
|
18.00 |
|
|
|
