 Sample Sequencer Logic

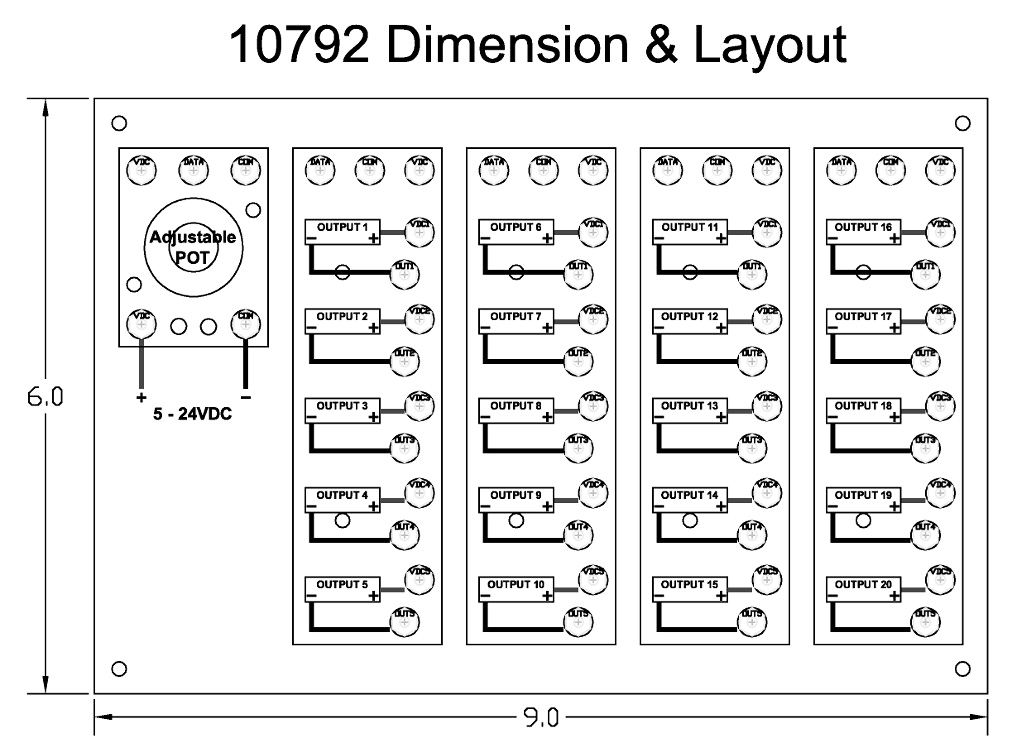

Model 10792 is 5-24VDC sequencer with 20 NPN outputs. Each output is able to switch loads up to 10A. The sequence automatically starts when power is applied. Outputs are activated in sequential order and will energize for an interval adjusted by the dial. The smallest resolution for an interval is 100ms. The 10792 is programmable and minimum and maximum interval adjusted by the dial can be programmed to fit any application. The number of outputs in the sequence can also be programmed. Please call for factory programming or the sequencer can be programmed in the field using the Phenix Infrared Programming system.

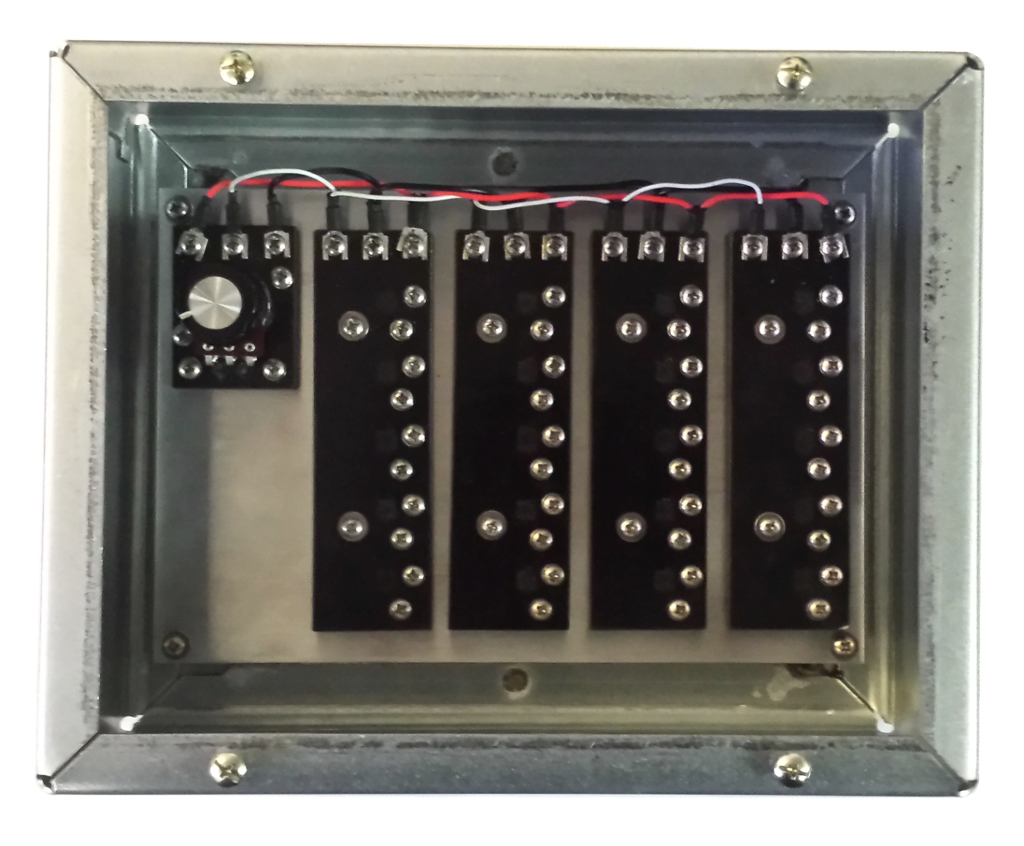

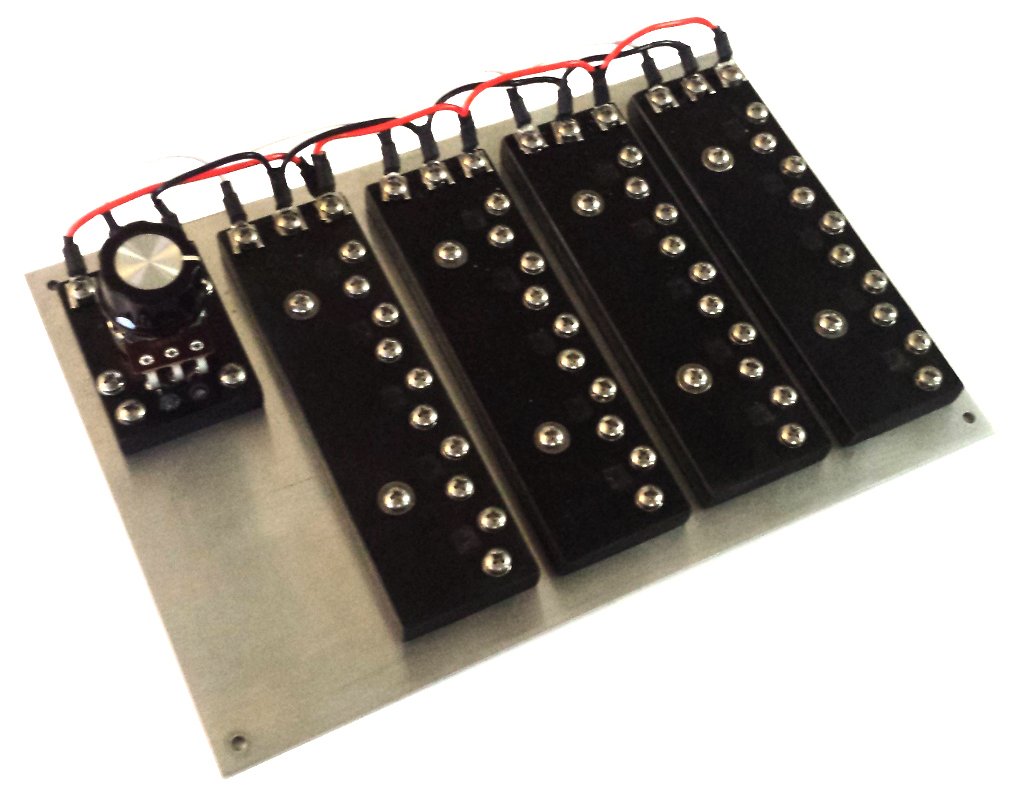

The 10792 includes an aluminum mounting plate. An optional NEMA 1 enclosure, model 10793 is available.
|
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
325.00 |
| 5 |
$
|
282.00 |
| 10 |
$
|
265.00 |
| 50 |
$
|
230.00 |
| 100 |
$
|
216.00 |
|
|
|
