3, 5, 12, 24, or 48 VDC Programmable Interval Timer, 10A Output
9621  Description

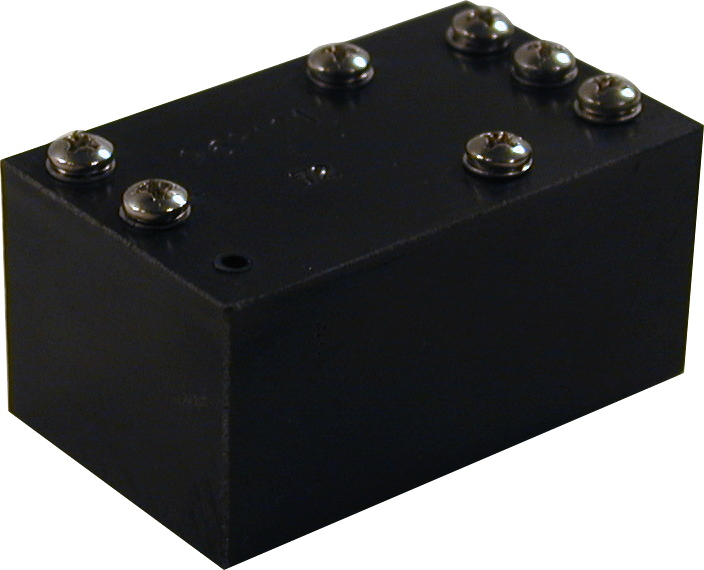

ProductModel 9621 is a 3, 5, 12, 24, or 48 VDC interval timer. The internal mechanical relay can switch AC and DC loads up to 10A. The minimum interval time is 100 ms (0.1s). Interval sequences can be started when the timer is powered or from the isolated two-wire encoded input. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.

This timer features a two-wire input that can be pulsed to activate an interval sequence.
Specifications
Operating Voltage
Voltage Type
3-48 DC
Output
Number of Outputs Switches Current Capacity Type
1 AC or DC 10A Mechanical
Time
Time Base Weekly Clock Clock Source
100ms No Crystal
Features
External Inputs Battery Backup Max Intervals
1 No 32

Input Voltage(Vdc)
  Model Supply Voltage Min Max
  9621 A1 3VDC 3 12
  9621 A2 3VDC 12 48
  9621 B1 5VDC 3 12
  9621 B2 5VDC 12 48
  9621 C1 12VDC 3 12
  9621 C2 12VDC 12 48
  9621 D1 24VDC 3 12
  9621 D2 24VDC 12 48
  9621 E1 48VDC 3 12
  9621 E2 48VDC 12 48

Pricing
Quantity Price USD
1 $ 26.00
5 $ 23.00
10 $ 22.00
50 $ 19.00
100 $ 18.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images
Dimensions
Dimensions

Sample connection diagram
Sample connection diagram
