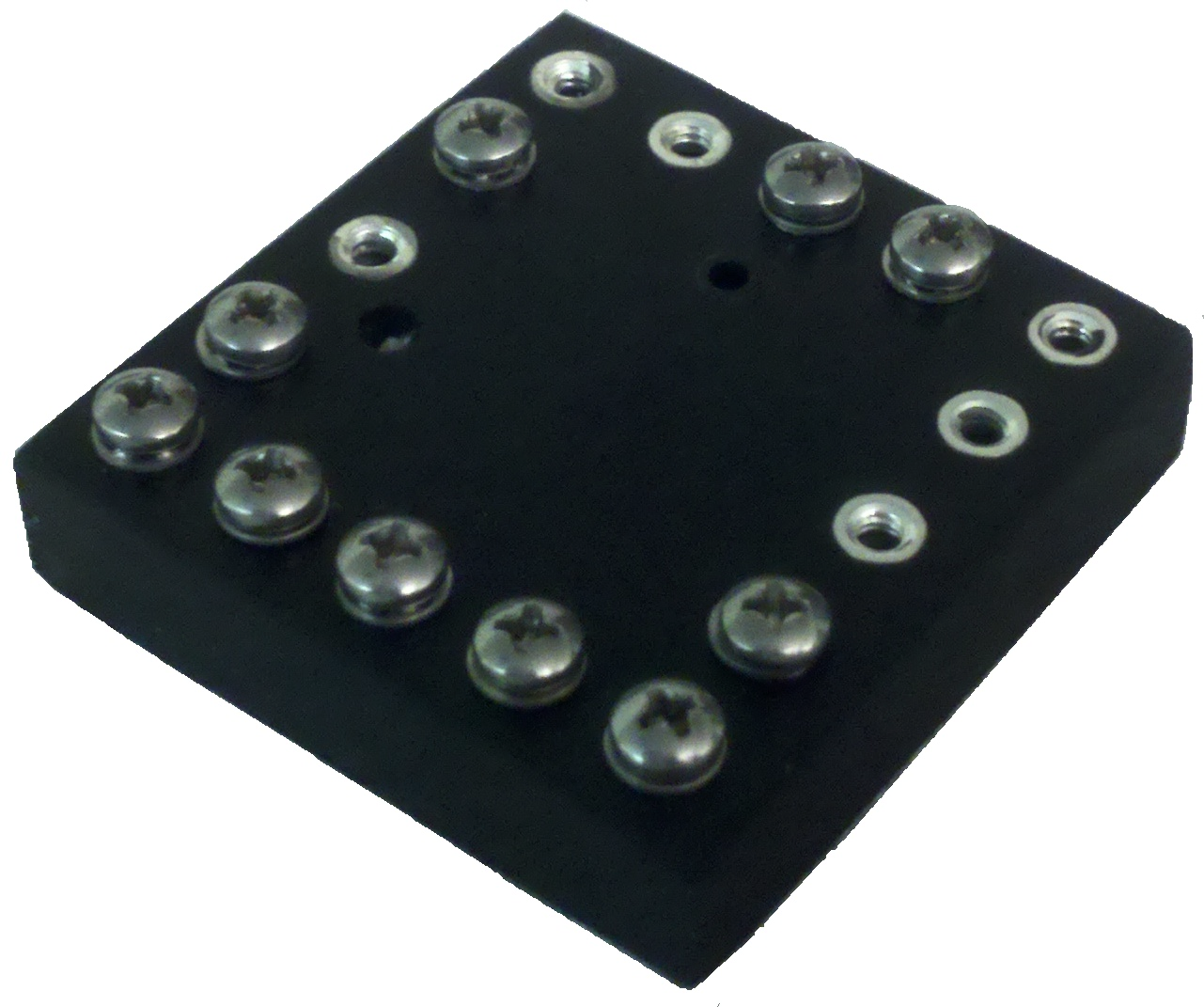

5 Output, 3-24 VDC Interval Timer with Weekly Clock
9262  Description
ProductModel 9262 is a 3-24 VDC interval timer. The 5 solid-state NPN outputs can each switch a DC load up to 2A. The minimum interval time is 100 ms. Interval sequences can started on power up, from one of the four wired inputs, or from a weekly clock event, such as Monday at 8:00 am. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
3-24 DC
Output
Number of Outputs Switches Current Capacity Type
5 DC 2A NPN
Time
Time Base Weekly Clock Clock Source
100ms Yes Crystal
Features
External Inputs Battery Backup Max Intervals
4 Yes 30

Operating Voltage
  Model Min Max
  9262 A 3VDC 12VDC
  9262 B 12VDC 24VDC

Pricing
Quantity Price USD
1 $ 45.00
5 $ 39.00
10 $ 37.00
50 $ 32.00
100 $ 30.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images

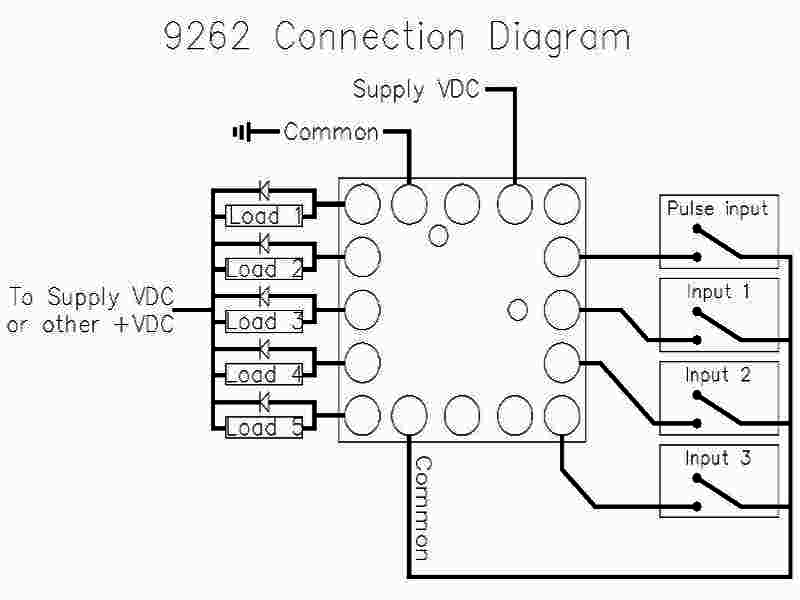

Connection Diagram 2
Connection Diagram 2

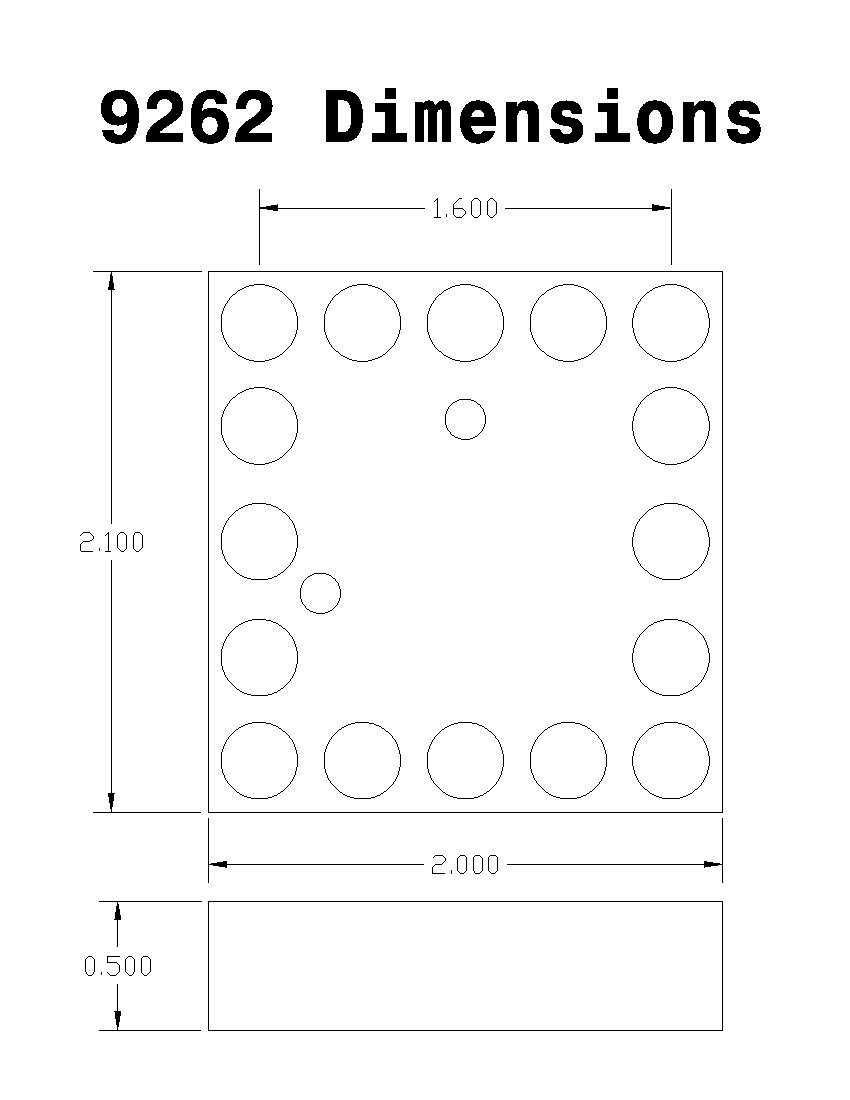

Dimensions
Dimensions

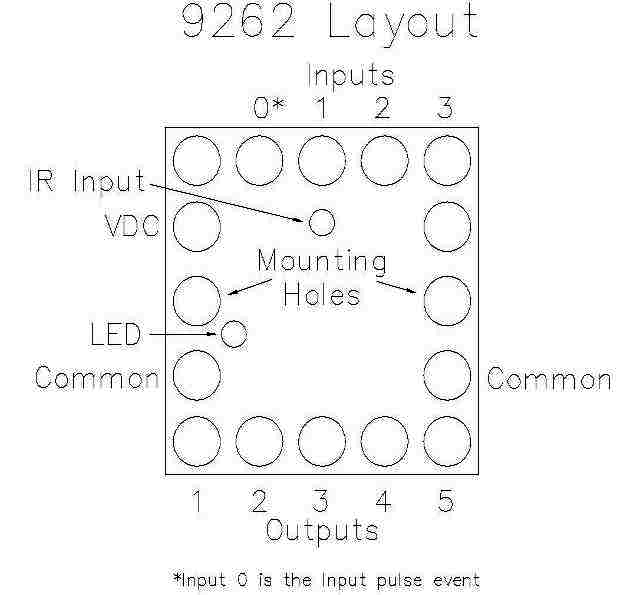

Layout 2
Layout 2
