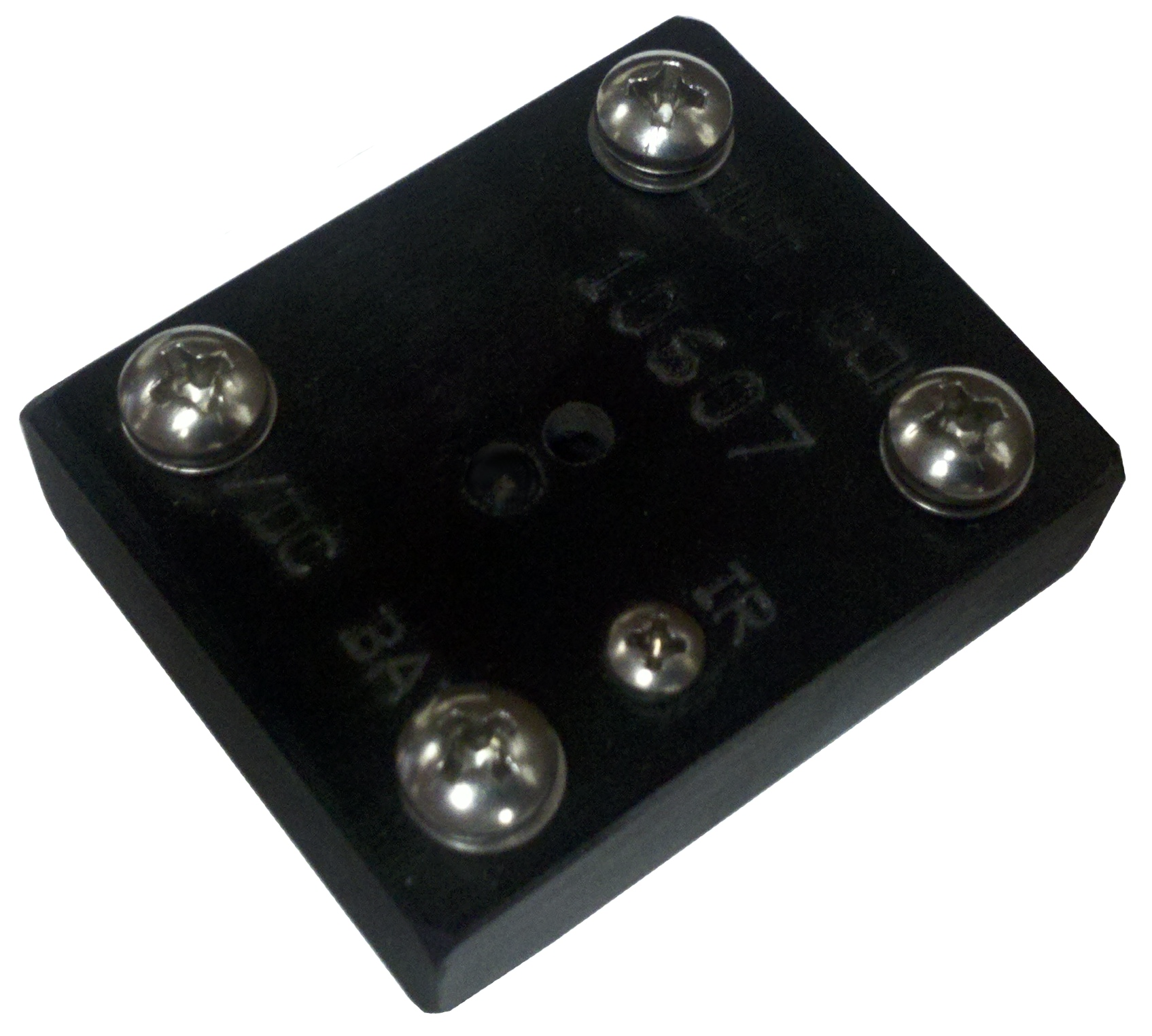

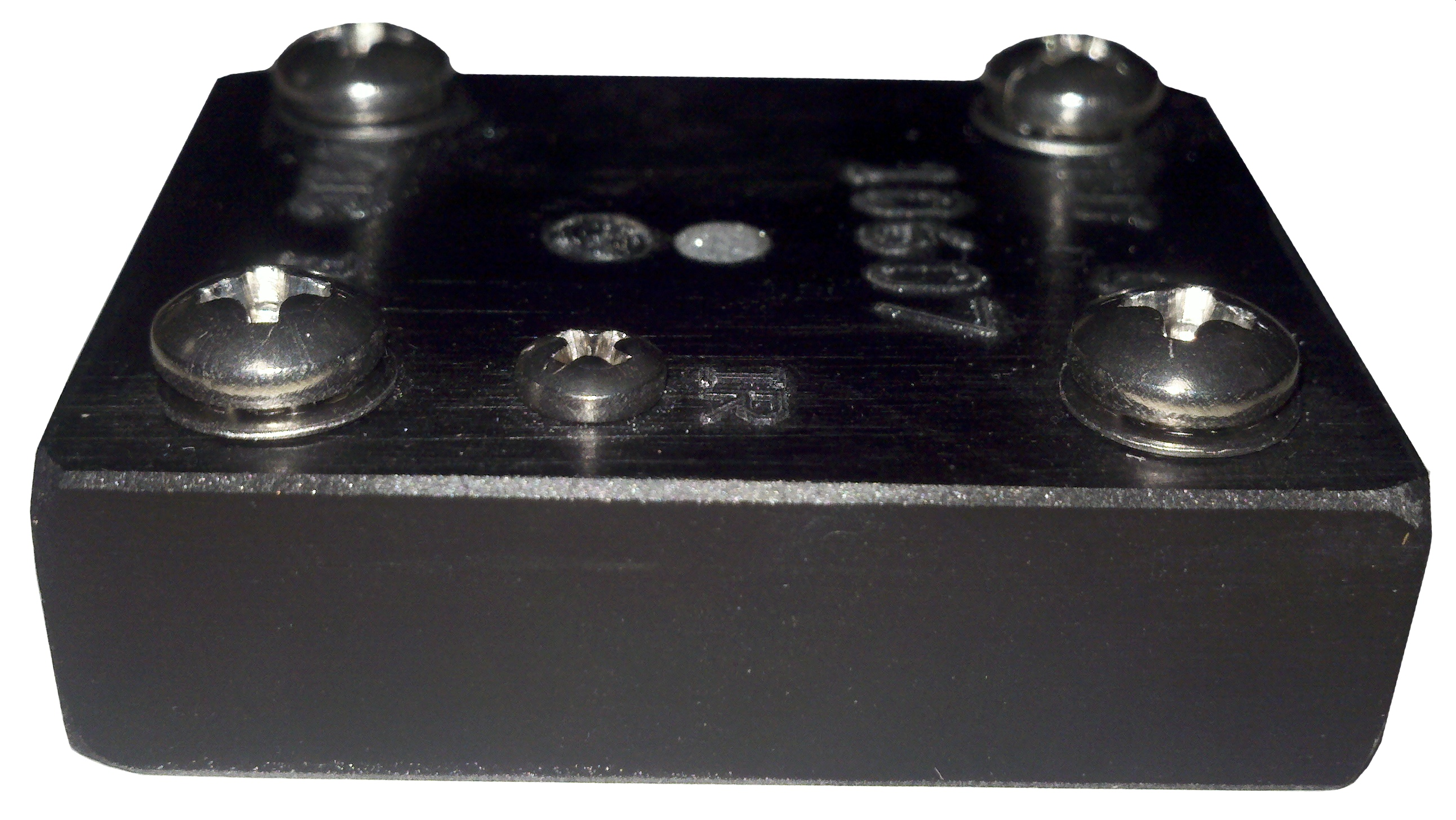

 Model 10607 is a 5-24 VDC interval timer with a weekly clock. The solid-state NPN output can switch a DC load up to 30A. The minimum interval time and clock resolution is 1 second. Interval sequences are initiated by clock events. For example, every Monday at 8:00 cycle on and off. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.
Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer. |
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
39.00 |
| 5 |
$
|
34.00 |
| 10 |
$
|
32.00 |
| 50 |
$
|
28.00 |
| 100 |
$
|
26.00 |
|
|
|
