Solid state relay.
7227  Description
ProductModel 7227 is a solid state relay, epoxy encapsulated, with no moving parts. The relay is available with zero crossing, which reduces high voltage transients. Inputs are fully protected from polarity reversal and have a 2500 volt isolation from input to output. Standard packaging features printed circuit board mounting. The Relay is also available with heat sink mounting and enhanced features. Model 7227 is available in 3-15 amp versions, with Form A outputs (SPST). Other designs are available upon request.This relay is CMOS and TTL compatible, and will turn on with less than 3ma of current.
Features
  • Zero Voltage Switching
  • Low Current Input
  • Photo Isolated
  • Small Size
  • Low Cost
  • High Reliability
Specifications
Operating Voltage 120VAC
Maximum Load 3A
Control Voltage 5VDC
Feature Low Control Current

Pricing
Quantity Price USD
1 $ 165.00
5 $ 143.00
10 $ 135.00
50 $ 117.00
100 $ 110.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images

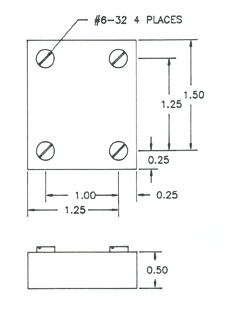

7227 Block Dimmensions
7227 Block Dimmensions

7227 Input Characteristics
7227 Input Characteristics

7227 Load Current vs. Temperature
7227 Load Current vs. Temperature
