Low Cost, Single Phase, Adjustable Trip AC Current Sensor
9993  Description
ProductModel 9993 is a single phase, low cost AC current switch. The 9993 has an internal relay with contact form 1C. The current trip point is continuously adjustable from 100 mA to 7 A.

This item is available on Amazon. Make sure you select the correct operating voltage version that you need.

The 120VAC "A" version Amazon part number is: B07WX6D6G6

The 5VDC "B" version Amazon part number is: B07WY3NKGZ

The 12VDC "C" version Amazon part number is: B07WY3NPXJ

The 24VDC "D" version Amazon part number is: B07WX1RSG4

Copy or type the Amazon part number on the Amazon website and you can order through them. Or Email us for ordering.
Features
  • Encapsulated to prevent environmental and physical damage
  • Accommodate wires up to 3/8 inch
  • Currents up to 7 A
  • Currents as low as 100mA
  • Outputs are isolated from monitored lines
Specifications
Operating Voltage
Min Type
3,5,12,
24,48 VDC
120 VAC
AC or DC
Maximum Output Current 10A
Sensing Range
Min Max Units
0.1 7 Amps
Number of Phases 1
Maximum Wire Size 3/8"
Trip Point Adjustable
Features AC Current Switch
Internal Relay
Continuously Adjustable Trip

  Model Operating Voltage
  9993 A 120VAC
  9993 B 5VDC
  9993 C 12VDC
  9993 D 24VDC
  9993 E 48VDC
  9993 F 3VDC

Pricing
Quantity Price USD
1 $ 21.00
5 $ 19.00
10 $ 18.00
50 $ 15.00
100 $ 14.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images
9993
9993

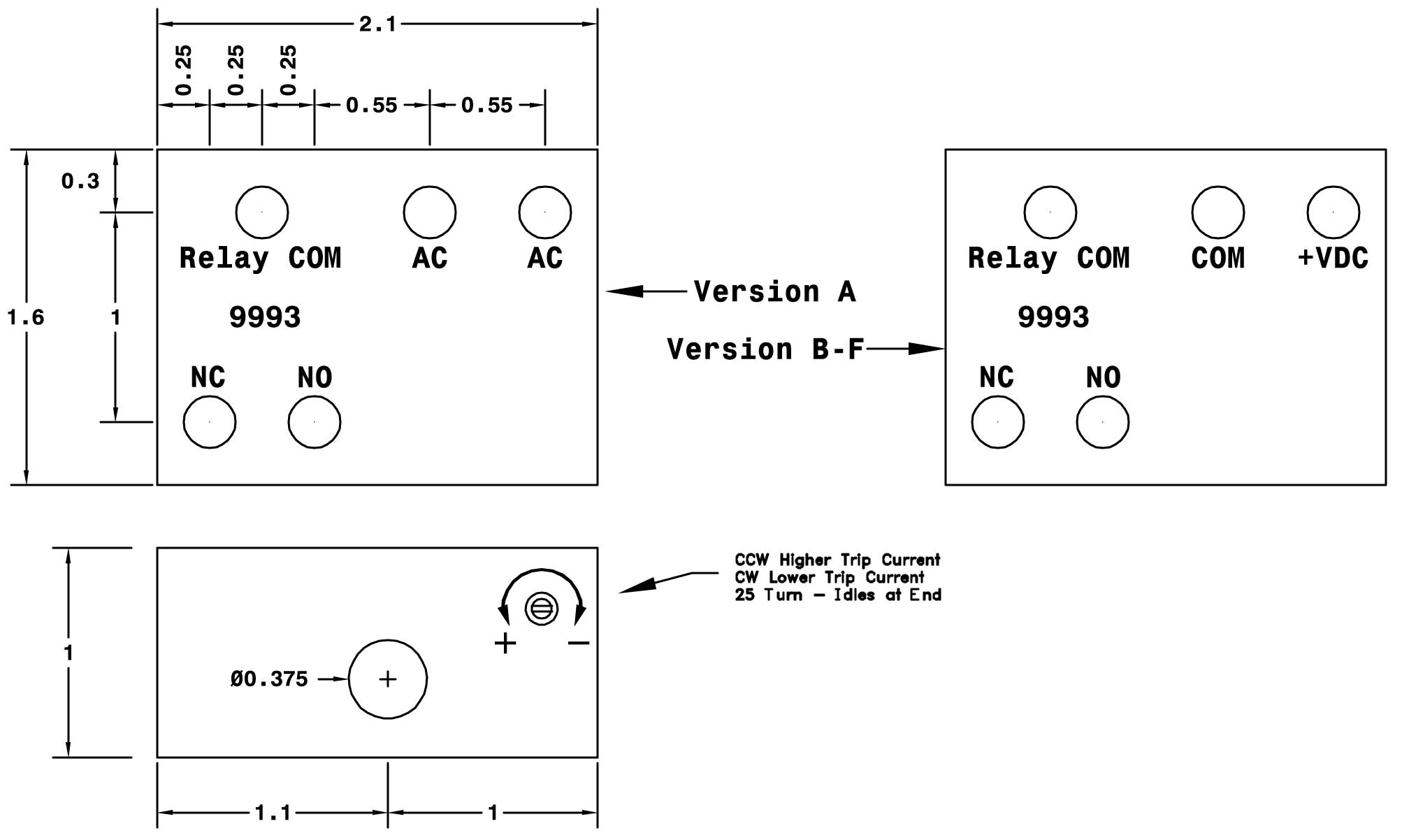

9993 Drawing
9993 Drawing

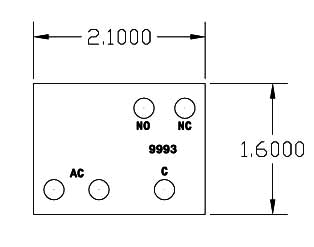

9993 Layout
9993 Layout



Pricing on website may not be current. Please call for Pricing
