5-24 VDC Solid State Programable Interval Timer, 2.5A Output
9845  Description

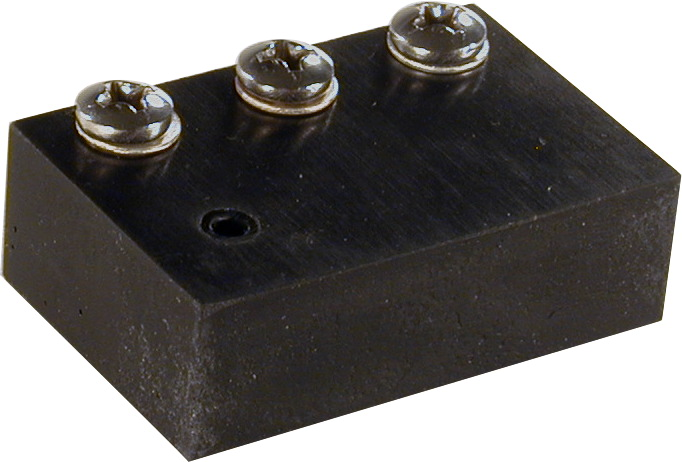

ProductModel 9845 is a 5-24 VDC interval timer. The solid-state NPN output can switch DC loads up to 2.5A. The minimum interval time is 100 ms (0.1s). Interval sequences can be started when the timer is powered or from the infrared encoded input. The intervals and settings are then transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
5-24 DC
Output
Number of Outputs Switches Current Capacity Type
1 DC 2.5A NPN
Time
Time Base Weekly Clock Clock Source
100ms No Crystal
Features
External Inputs Battery Backup Max Intervals
0 No 32

Operating Voltage
  Model Min Max
  9845 A 5VDC 24VDC

Pricing
Quantity Price USD
1 $ 16.00
5 $ 14.00
10 $ 14.00
50 $ 12.00
100 $ 11.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images

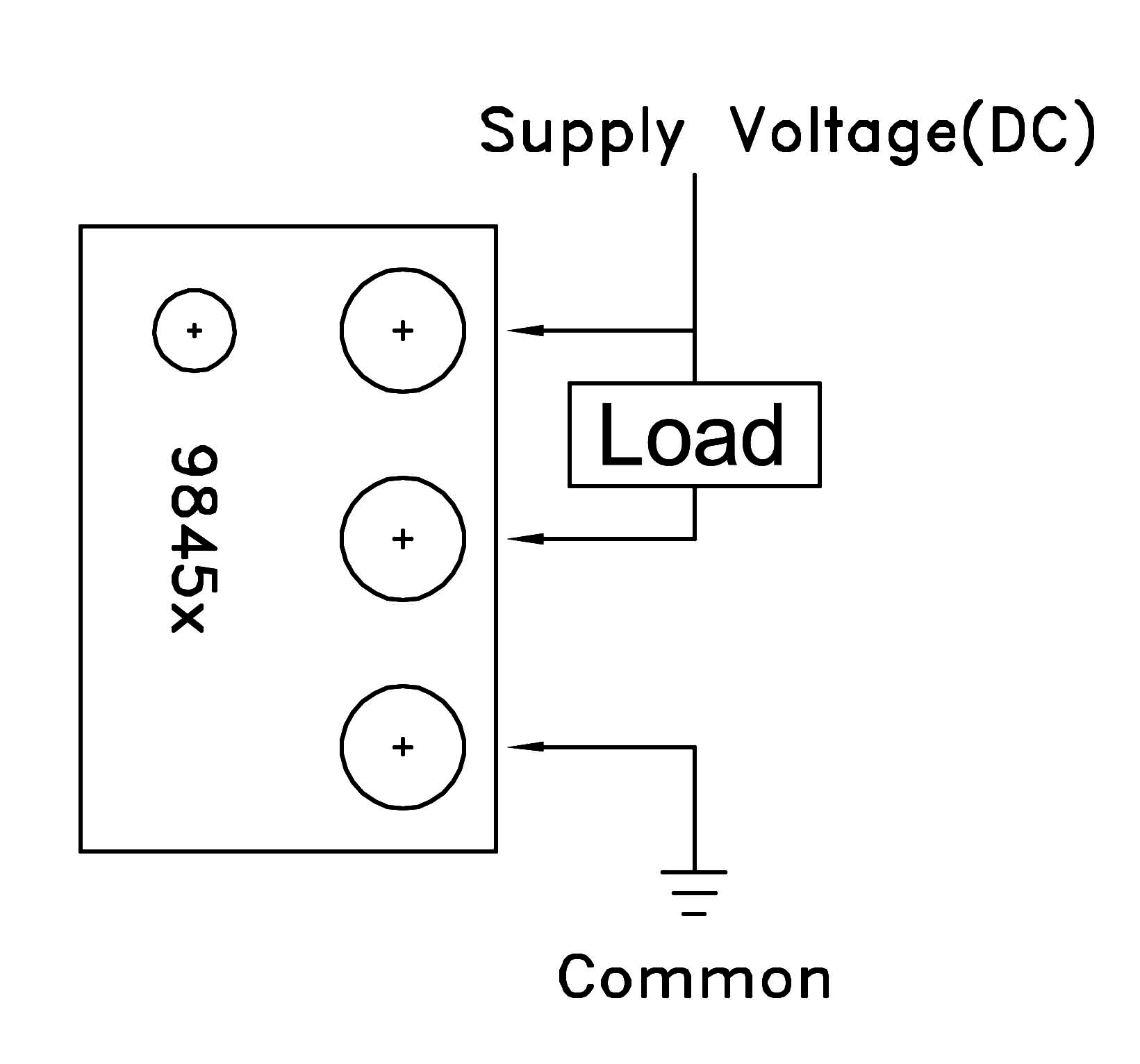

Connection Diagram
Connection Diagram

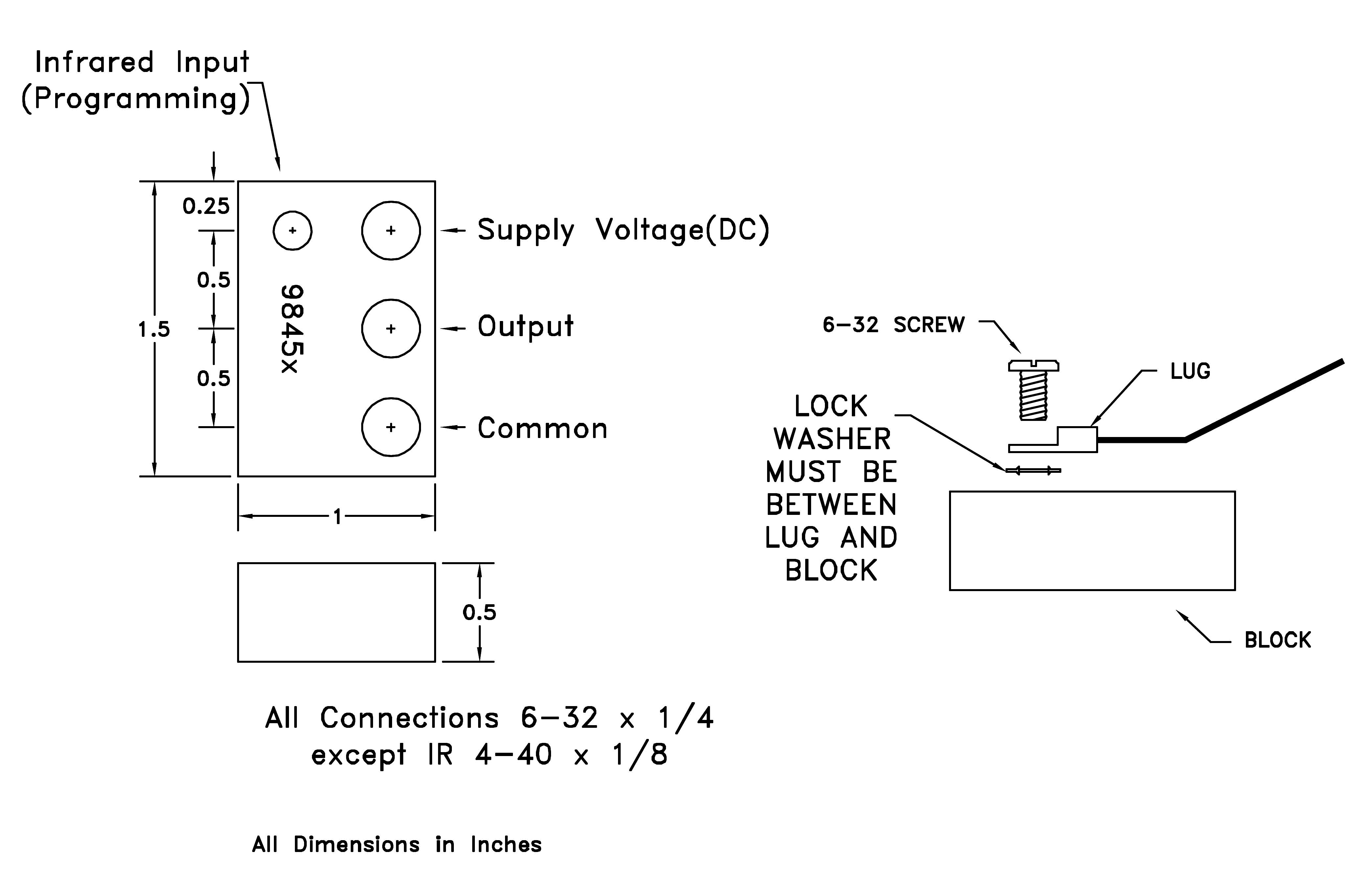

Dimensions
Dimensions

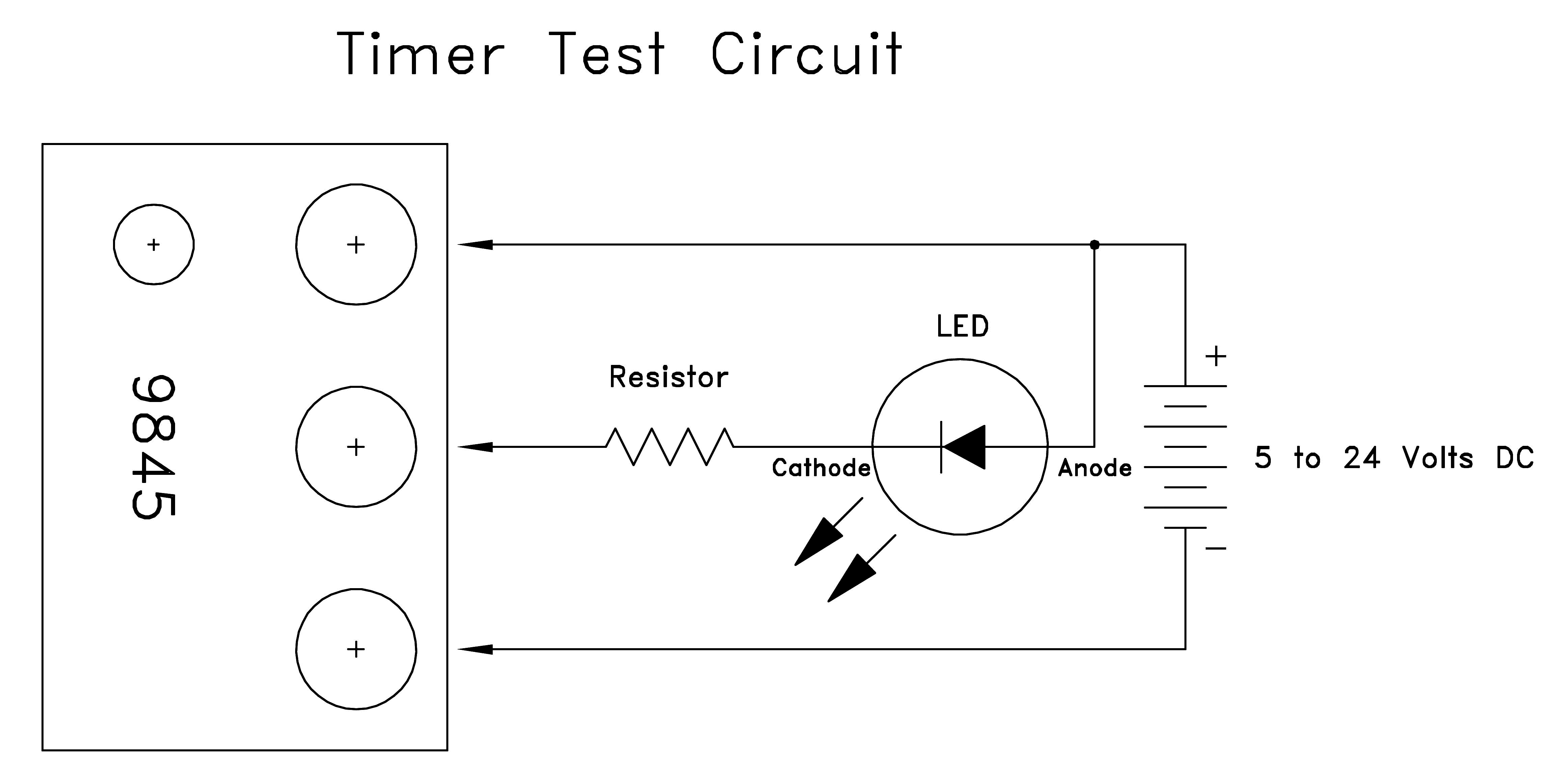

Sample Circuit
Sample Circuit
