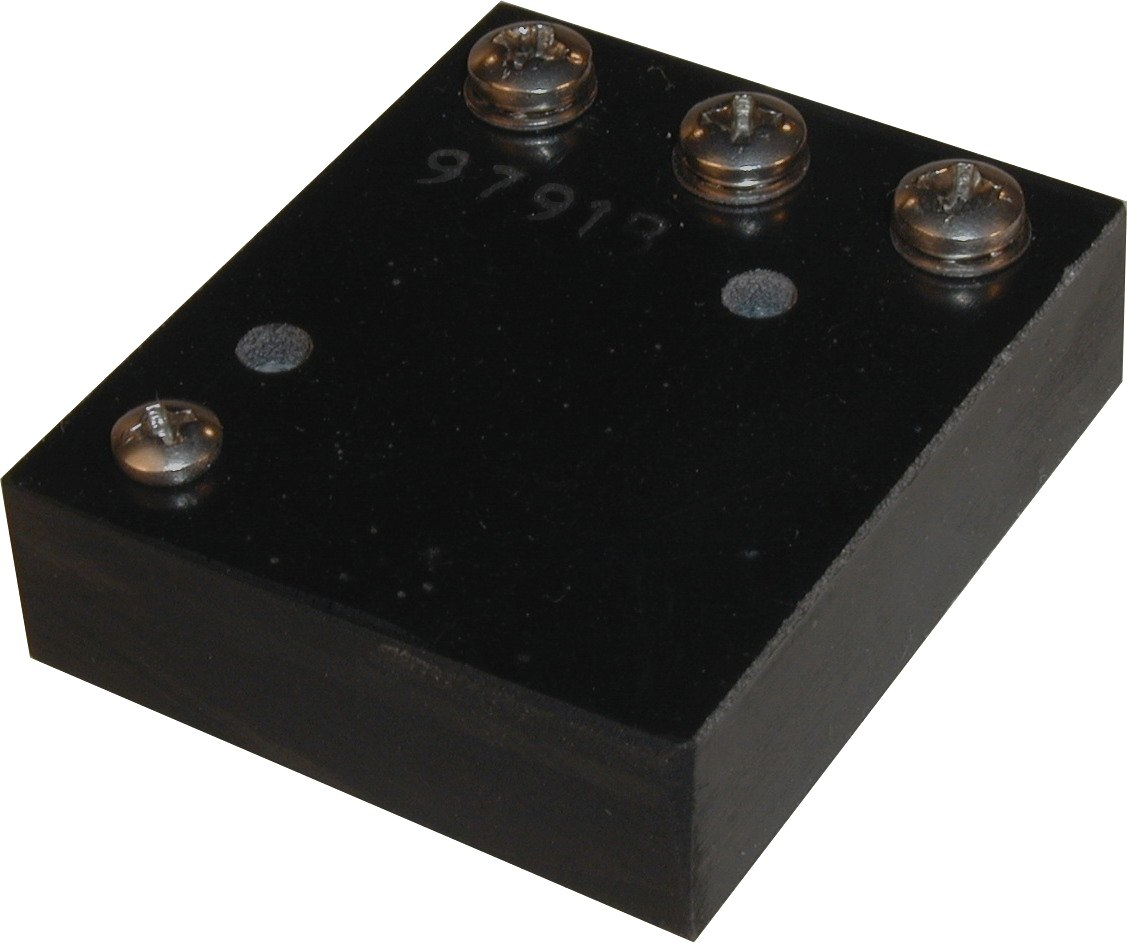

 Model 9791 is a 24 or 120 VAC interval timer. The solid-state output can switch AC loads up to 3A. The minimum interval time is 100 ms (0.1s). Interval sequences can be started when the timer is powered or from the infrared encoded input. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.
Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer. |
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
20.00 |
| 5 |
$
|
18.00 |
| 10 |
$
|
17.00 |
| 50 |
$
|
15.00 |
| 100 |
$
|
14.00 |
|
|
|
