110 - 240 VAC Sequential Timer, 10 Outputs
9299  Description
ProductModel 9299 is an AC sequential 10 output timer. Each of the 10 external mechanical relays can switch AC and DC loads up to 30A. The outputs are isolated from the operating voltage. The 9299 is fully programmable using the Phenix Infrared Programming.

The timing sequence may be initiated when power is applied to the timer, from an external switch, or at specific time of day, such as 8:00 AM Monday. The minimum interval time is 100 ms (0.1s). For more information about setting up the timer, please see Timer Programming.

Two operating voltage versions are available, 110-120 and 220-240 VAC. Changing the jumpers and wires changes the operating voltage for the timer.
Specifications
Operating Voltage
Voltage Type
110-240 AC
Output
Number of Outputs Switches Current Capacity Type
10 AC or DC 30A Mechanical
Time
Time Base Weekly Clock Clock Source
100ms Yes Crystal
Features
External Inputs Battery Backup Max Intervals
5 Yes 30

Operating Voltage
  Model Min Max
  9299 A 110VAC 120VAC
  9299 B 220VAC 240VAC

Pricing
Quantity Price USD
1 $ 265.00
5 $ 230.00
10 $ 216.00
50 $ 187.00
100 $ 176.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images

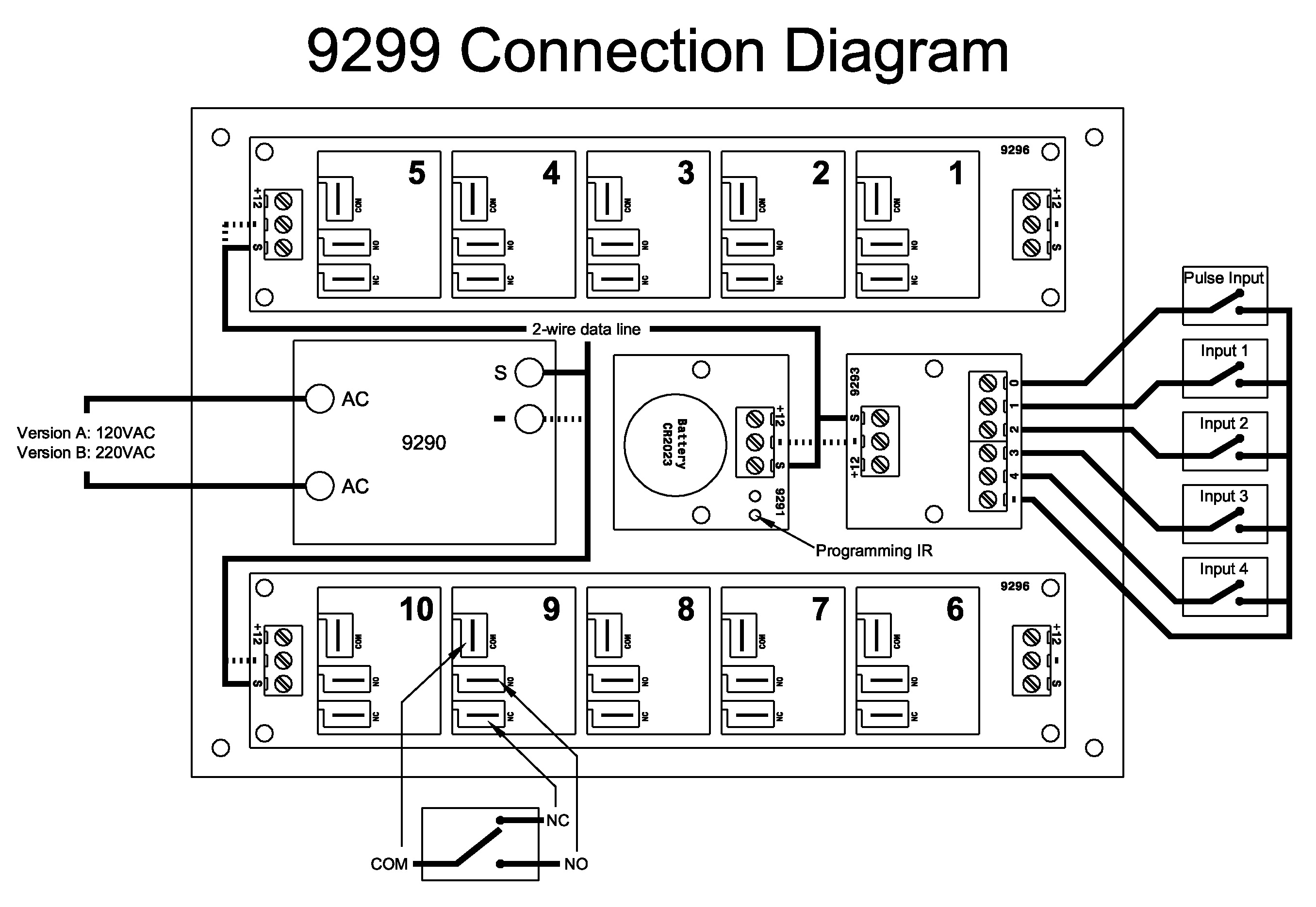

9299 Connection Diagram
9299 Connection Diagram

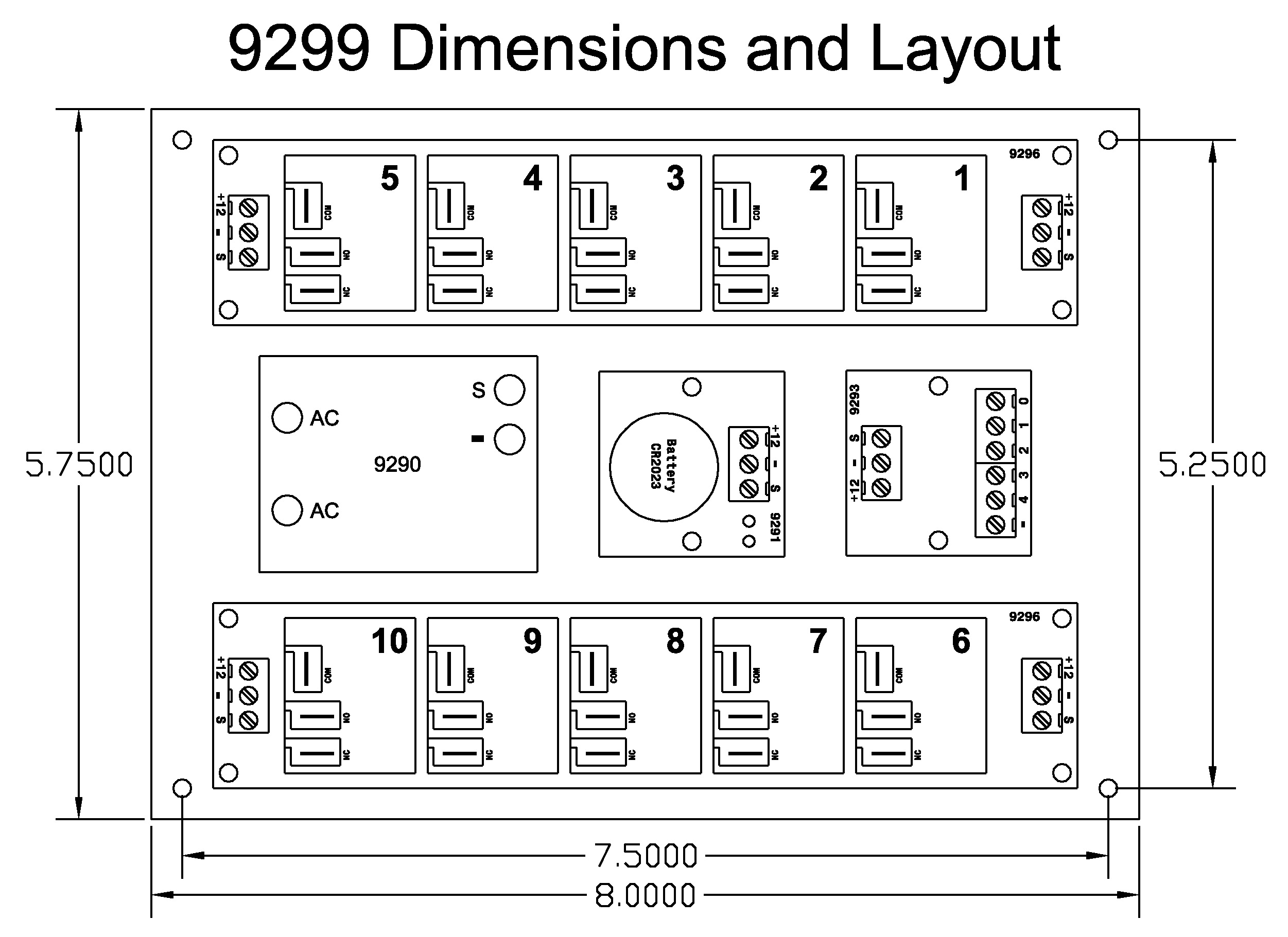

9299 Dimensions & Layout
9299 Dimensions & Layout

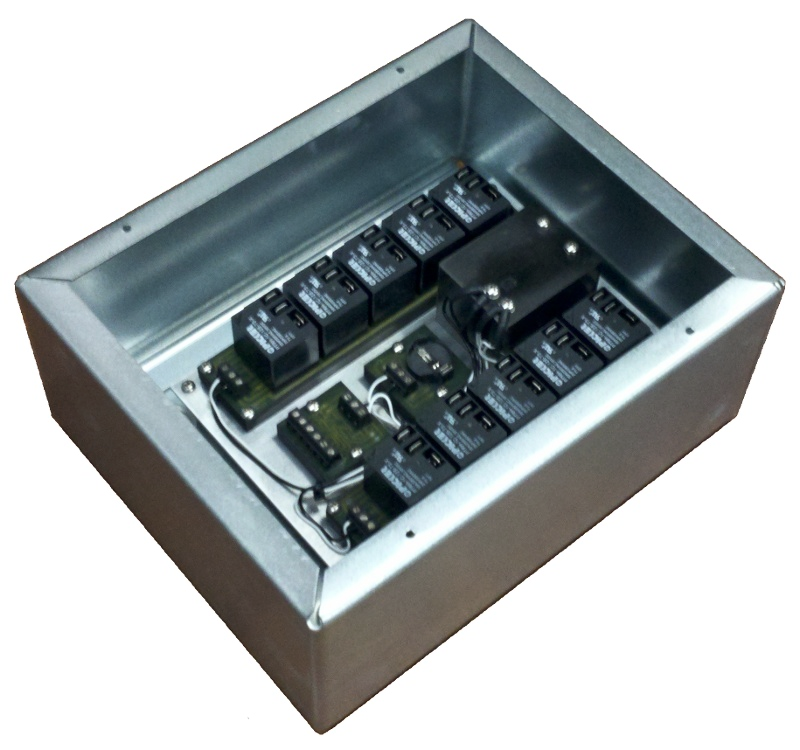

9299 Optional Enclosure
9299 Optional Enclosure

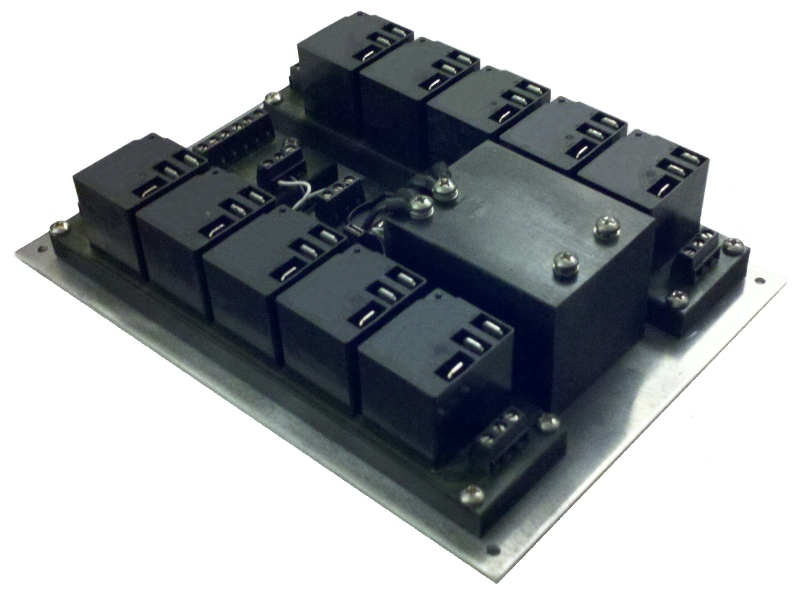

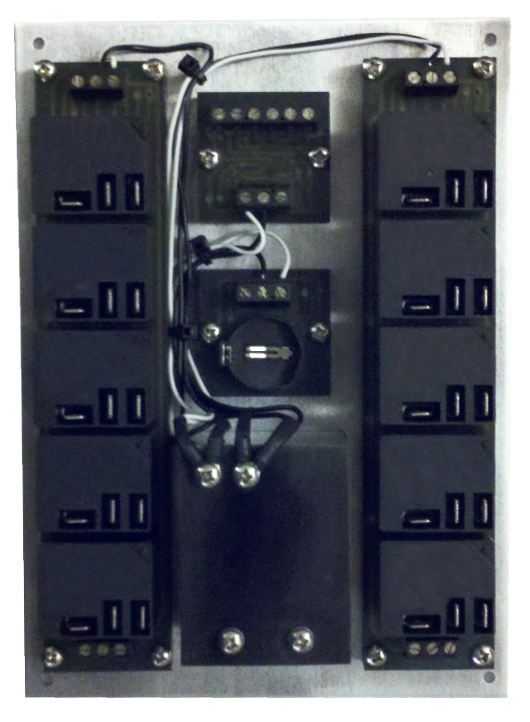

9299 Top View
9299 Top View
