120 VAC Dual 30A Relay Interval Timer
9268  Description
ProductModel 9268 is a programmable interval timer with a weekly clock designed to operate on 120 VAC. The two mechanical relay outputs can switch loads up to 30A, AC or DC, and are isolated from each other and the supply voltage. The 9268 Timer can store up to 30 intervals. Interval sequences can be programmed to start on power, daily, or weekly. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
120 AC
Output
Number of Outputs Switches Current Capacity Type
2 AC or DC 30A Mechanical
Time
Time Base Weekly Clock Clock Source
100ms Yes AC Line
Features
External Inputs Battery Backup Max Intervals
0 No 30

Pricing
Quantity Price USD
1 $ 39.00
5 $ 34.00
10 $ 32.00
50 $ 28.00
100 $ 26.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images

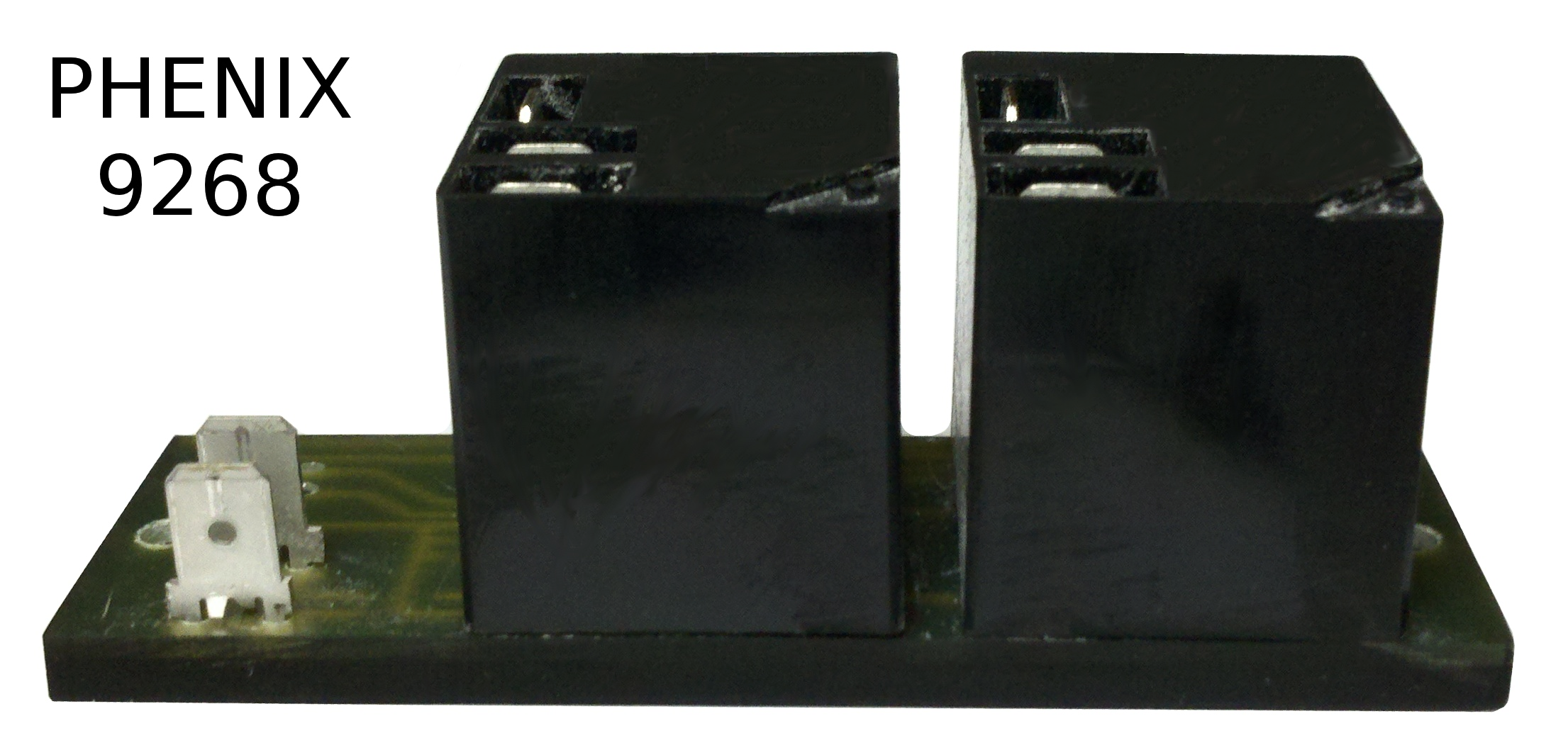

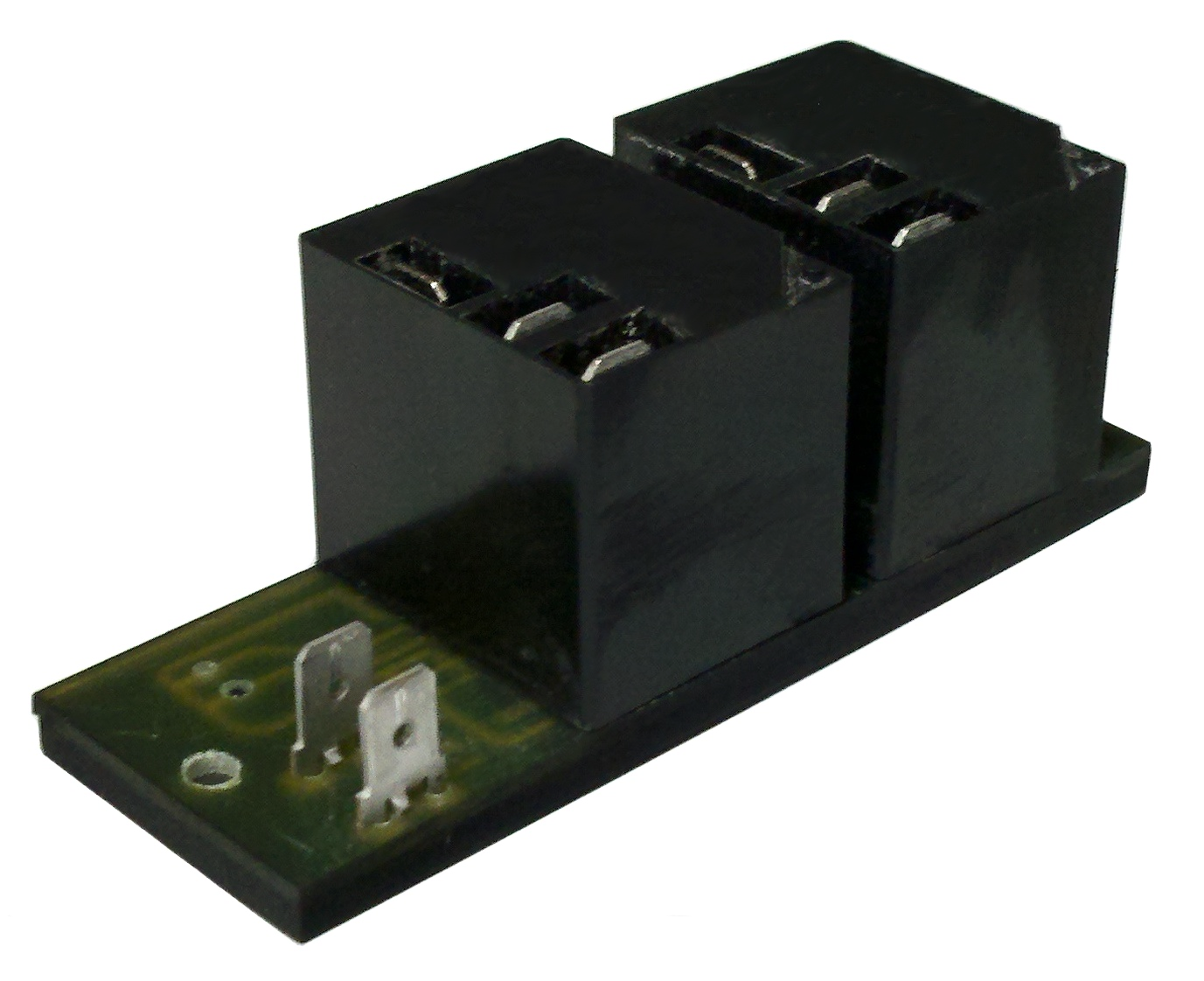

9268 Side View
9268 Side View

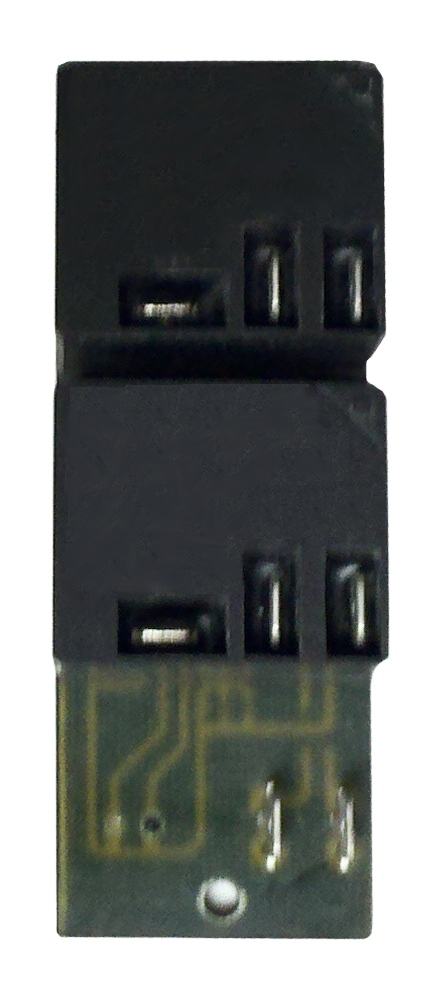

9268 Top View
9268 Top View

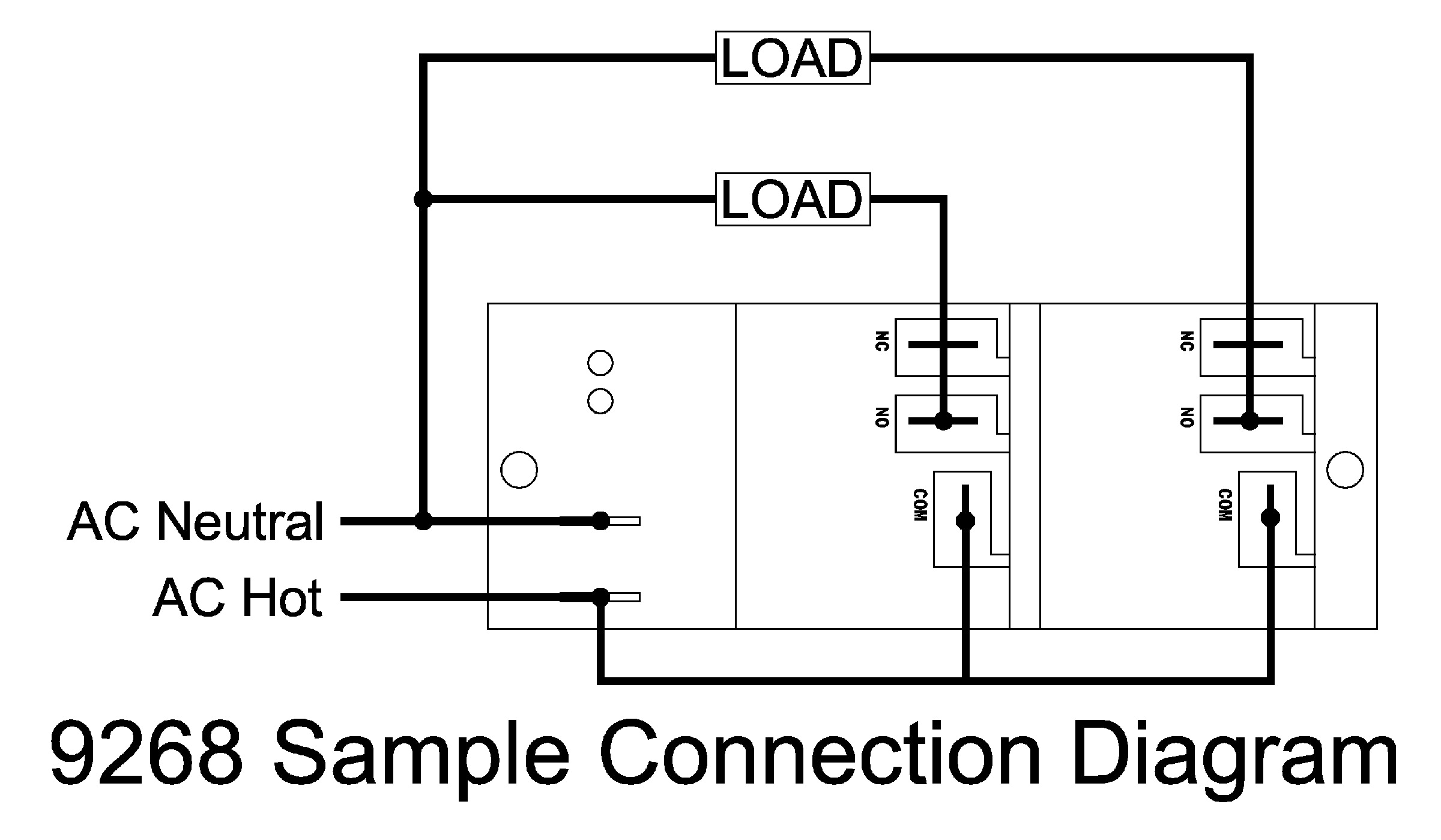

Connection Diagram
Connection Diagram

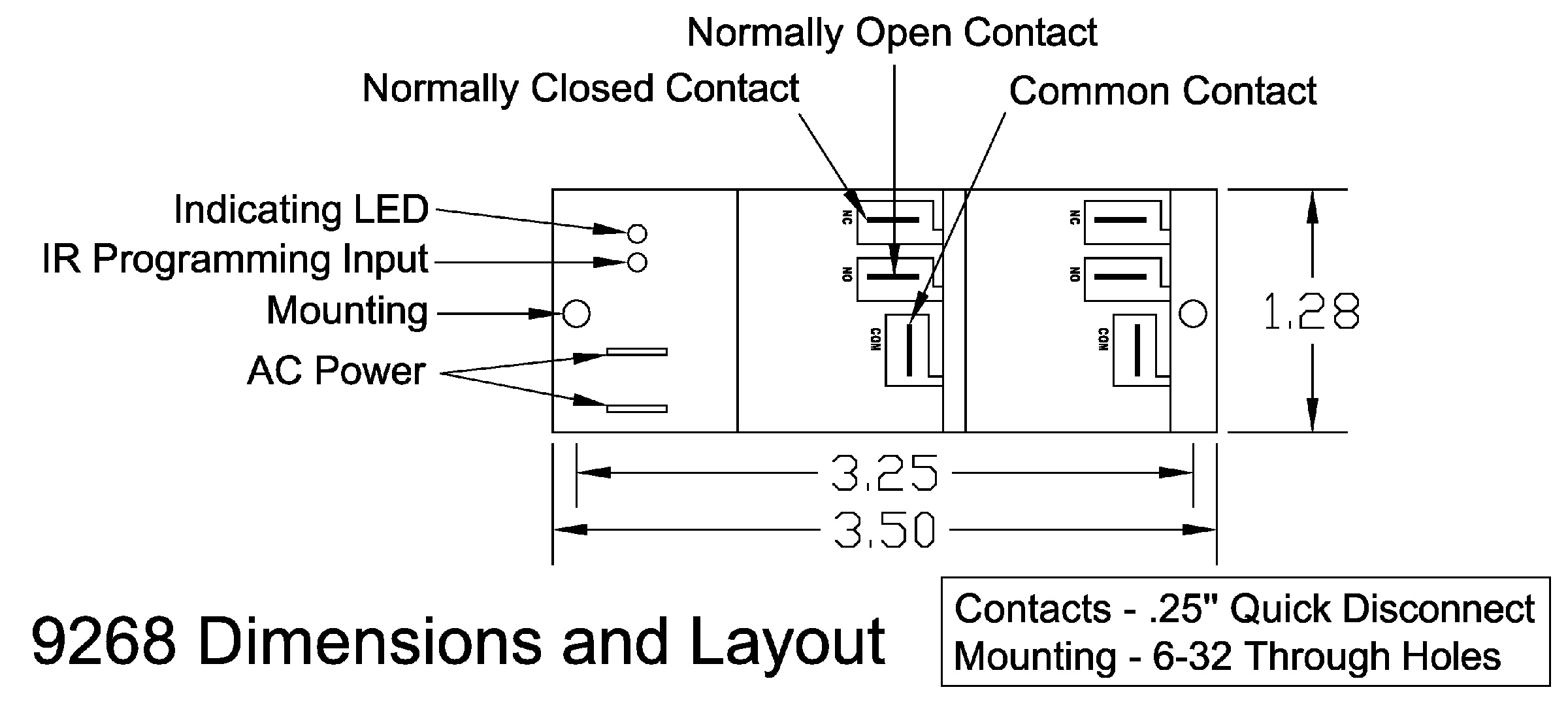

Dimensions and Layout
Dimensions and Layout
