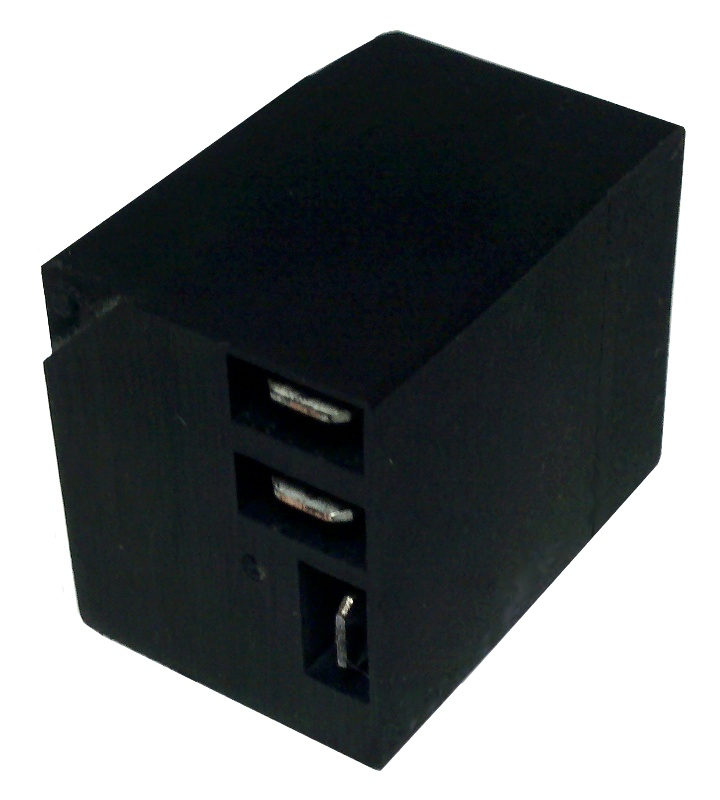

120 VAC Interval Weekly Clock Timer, 30A Output
9265  Description
ProductModel 9265 is a programmable interval timer with a weekly clock designed to fit most basic 120 VAC power timing applications. The single mechanical relay output can switch loads up to 30A. The 9265 Timer can store up to 30 intervals. Interval sequences can be programmed to start on power, daily, or weekly. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.
Operating Voltage
Voltage Type
120 AC
Number of Outputs Switches Current Capacity Type
1 AC or DC 30A Mechanical
Time Base Weekly Clock Clock Source
100ms Yes Crystal
External Inputs Battery Backup Max Intervals
0 No 30

Quantity Price USD
1 $ 21.00
5 $ 19.00
10 $ 18.00
50 $ 15.00
100 $ 14.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
9265 Connection Diagram
9265 Connection Diagram

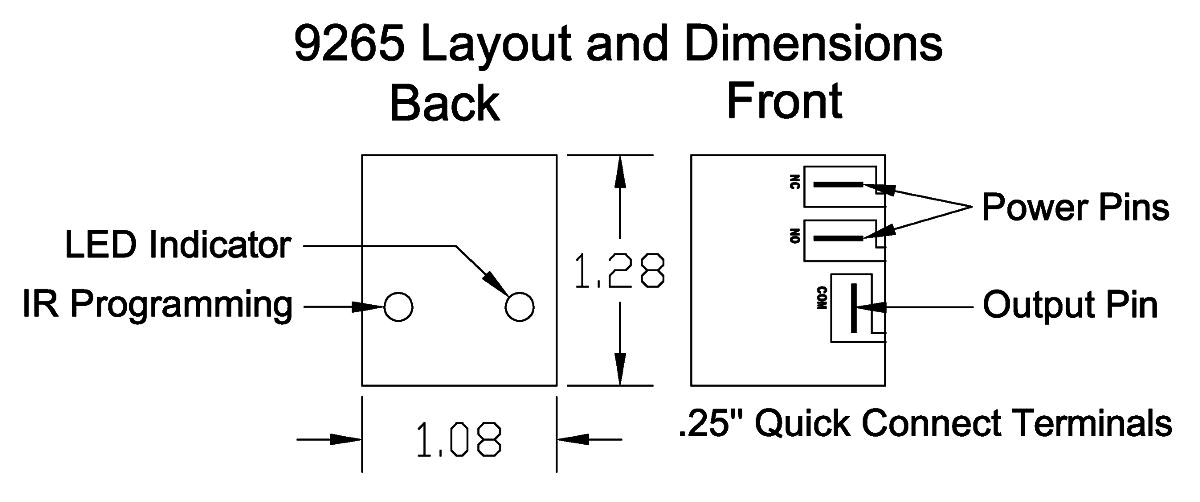

9265 Layout and Dimensions
9265 Layout and Dimensions
