5-24VDC 10A Timer
14000  Description
ProductModel 1400 is a 5-24 VDC timer. The 14000 timer is able to switch DC loads up to 10A. Fully programmable ON/OFF times up to 30 different intervals. Minimum time resolution is 1 milliseconds. The encapsulated solid state N-FET relay output can switch loads up to 10A.

This timer is fully programmable using the Phenix Infrared Programming system. Intervals are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then transferred into an infrared remote programmer, model 9245, through the USB interface. The intervals are then transmitted from the remote to the infrared input on the timer.

Factory programming available, please call for details.
Specifications
Operating Voltage
Voltage Type
5-24 DC
Output
Number of Outputs Switches Current Capacity Type
1 DC 10A NPN
Time
Time Base Weekly Clock Clock Source
1ms Yes Crystal
Features
External Inputs Battery Backup Max Intervals
0 No 30

Pricing
Quantity Price USD
1 $ 37.00
5 $ 33.00
10 $ 31.00
50 $ 27.00
100 $ 25.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images

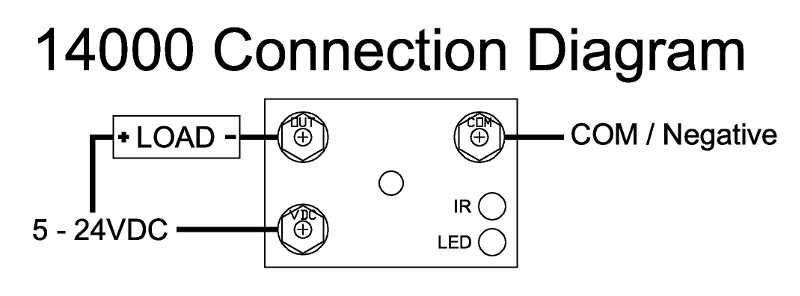

Connection Diagram
Connection Diagram

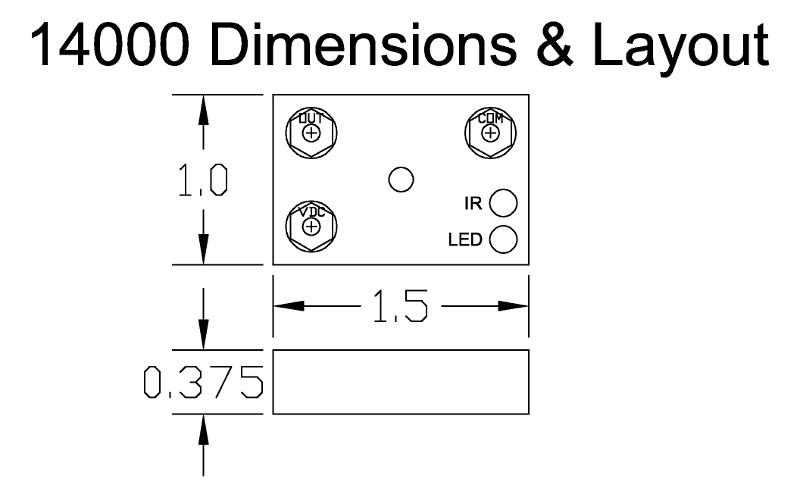

Dimensions & Layout
Dimensions & Layout
