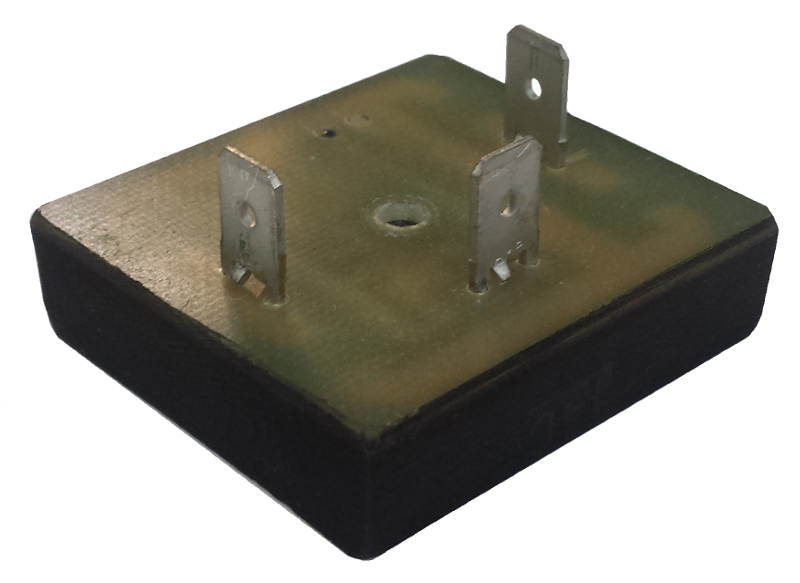

 Model 10784 is a 12 to 120V ON / OFF delay inline timer. The inline solid state relay can switch AC or DC loads up to 3A. The minimum delay time is 100 ms (0.1s) and maximum delay is 10 seconds. The 10784 can be programmed as an ON delay or OFF delay timer. The delay interval and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.
Delay time and settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then sent to an infrared remote programmer, model 9245, through the USB interface. The interval program is then transmitted from the remote to the infrared input on the timer. |
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
29.00 |
| 5 |
$
|
26.00 |
| 10 |
$
|
24.00 |
| 50 |
$
|
21.00 |
| 100 |
$
|
20.00 |
|
|
|
