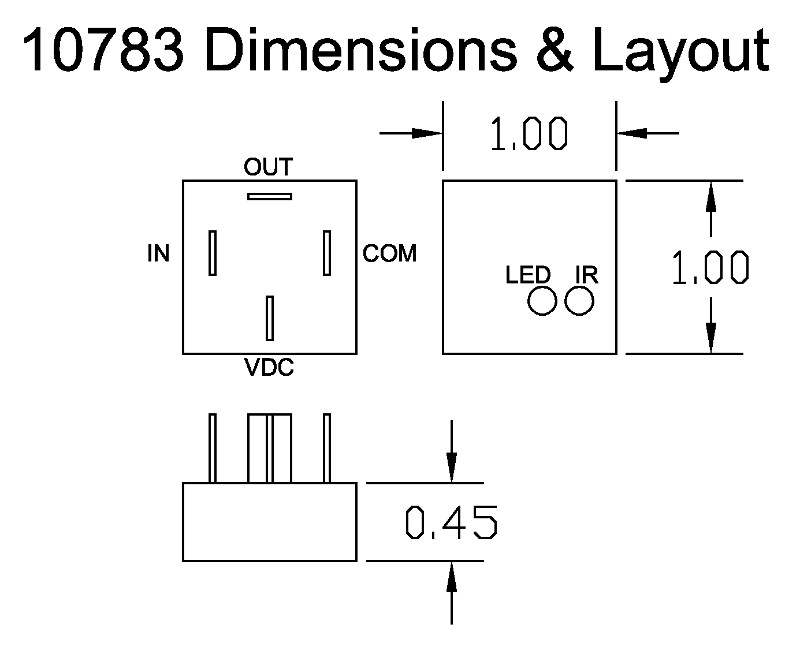

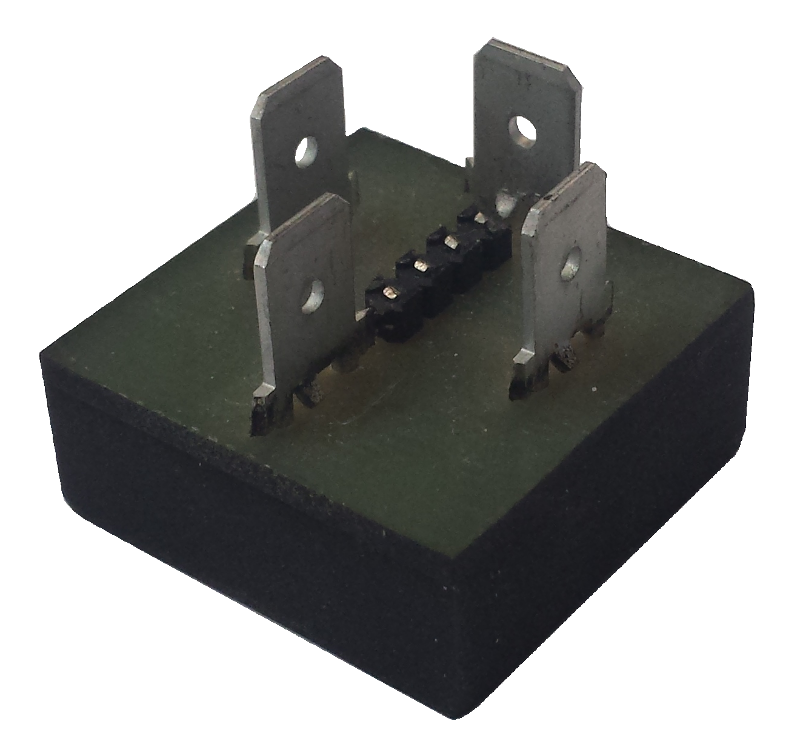

 Model 10783 is a 12V solid state ON or OFF delay relay. The .25" quick disconnect terminals and small package size are prefect for automotive applications or automotive type relay sockets. The maximum relay switching load is 10A.
The 10783 is fully programmable and can be set as an ON or OFF delay timer with a delay interval from 1 ms to 24 hours. The ON / OFF delay interval can be started on the rising or falling edge of the input.
The timer settings can be programmed in factory and shipped with your settings or can be set in field using the Phenix Programmer Software and a USB interface, model 9245. The Phenix Programmer Software is available for free.
|
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
24.00 |
| 5 |
$
|
21.00 |
| 10 |
$
|
20.00 |
| 50 |
$
|
17.00 |
| 100 |
$
|
16.00 |
|
|
|
