8 Output Solenoid Sequencer

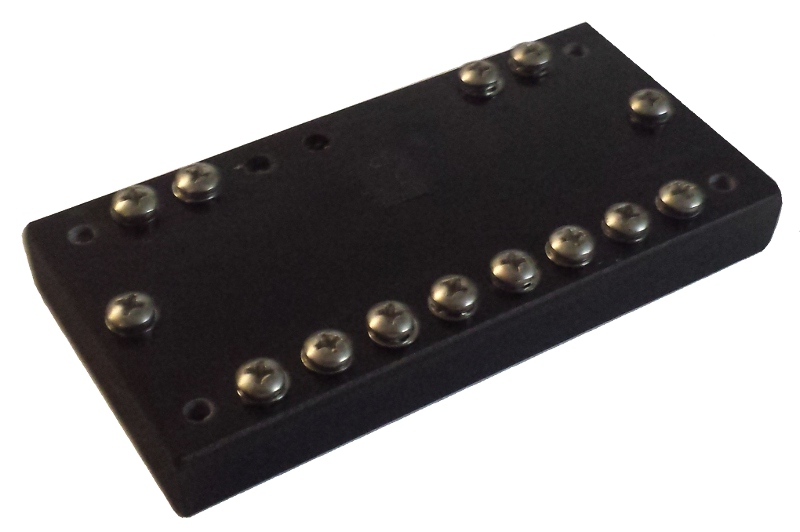

10758  Description
ProductModel 10758 is a 5-48VDC solenoid sequencer. The outputs are activated in sequence on a negative transition of the activate terminal. The activation terminal can be connected through a momentary switch to the common terminal. The outputs are activated in order from left to right for each negative transition of the activate terminal. After the last output has been energized, transitions on the activate terminal are ignored. A negative transition on the reset terminal will reset the sequence such that the left most terminal is energized on the next activation.

The 10758 has internal protection diode. These diodes prevent high return voltage from damaging the outputs. The output loads must also be connected to the same VDC that operates the 10758.

The amount of time each output is energized is programmable. The activation time is defined using Phenix Programmer Software which is available online for FREE. Timer settings are then sent to an infrared remote programmer, model 9245, through the USB interface. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
5-48 VDC
Output
Number of Outputs Switches Current Capacity Type
8 VDC 2A NPN
Time
Time Base Weekly Clock Clock Source
1ms No Crystal
Features
External Inputs Battery Backup Max Intervals
2 Yes 1

Pricing
Quantity Price USD
1 $ 54.00
5 $ 47.00
10 $ 44.00
50 $ 39.00
100 $ 36.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images

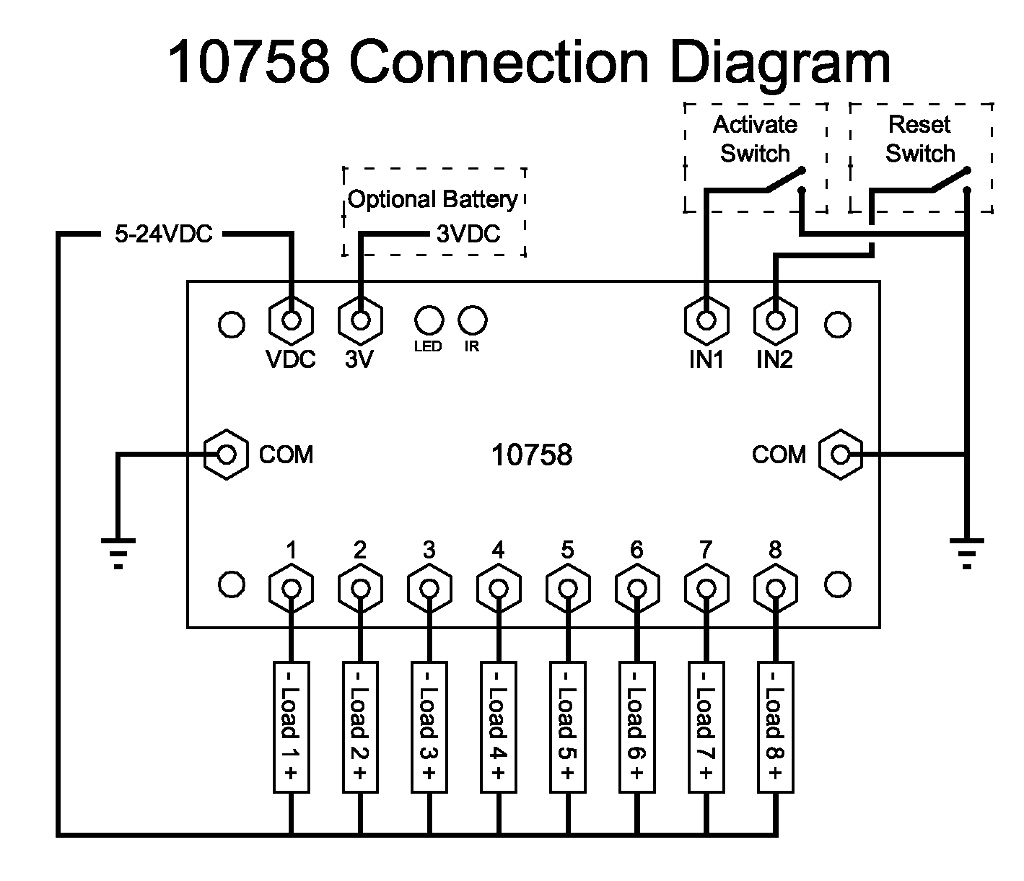

Connection Diagram
