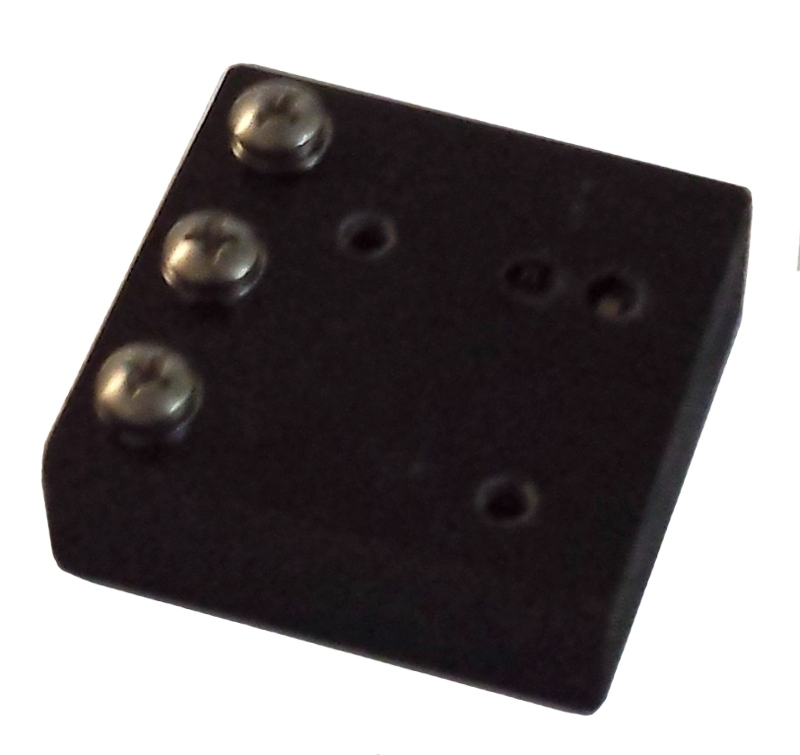

24 or 120 VAC Programmable Interval Timer, 3A Solid State Output
10757  Description
ProductModel 10757 is a 24 or 120 VAC interval timer. The solid-state output can switch AC loads up to 3A. The minimum interval time is 100 ms (0.1s). Interval sequences can be started when the timer is powered. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then sent to an infrared remote programmer, model 9245, through the USB interface. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
24, 120 AC
Output
Number of Outputs Switches Current Capacity Type
1 AC 3A Triac
Time
Time Base Weekly Clock Clock Source
100ms Yes Crystal
Features
External Inputs Battery Backup Max Intervals
0 No 30

  Model Operating Voltage
  10757 A 24VAC
  10757 B 120VAC

Pricing
Quantity Price USD
1 $ 20.00
5 $ 18.00
10 $ 17.00
50 $ 15.00
100 $ 14.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images

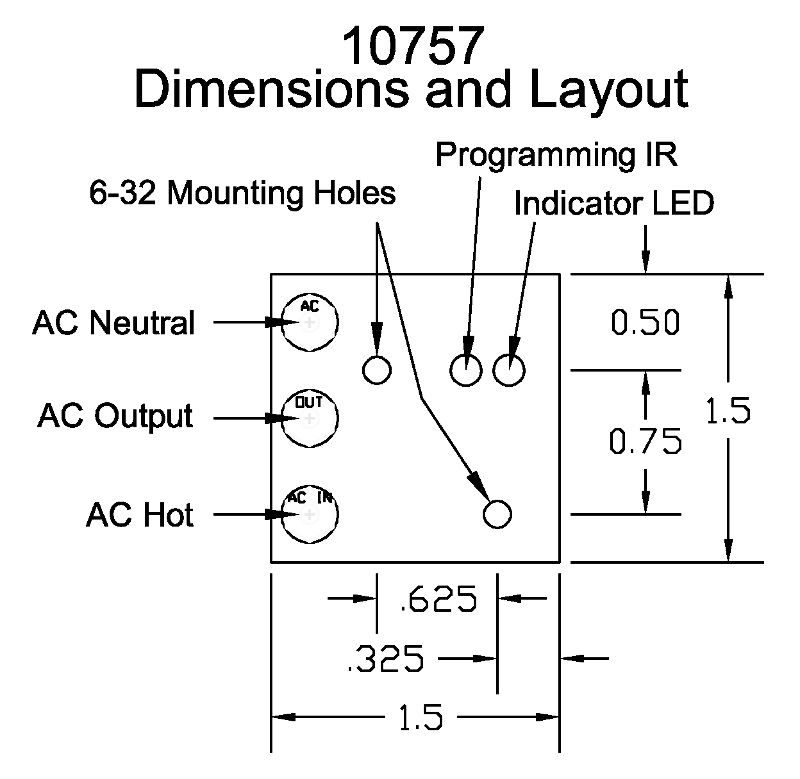

10757 Dimensions and Layout
10757 Dimensions and Layout

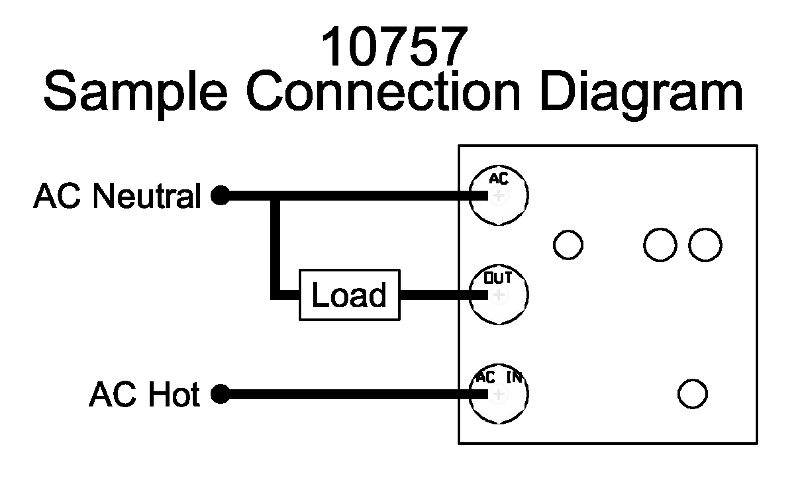

10757 Sample Connection
10757 Sample Connection



Pricing on website may not be current. Please call for Pricing
