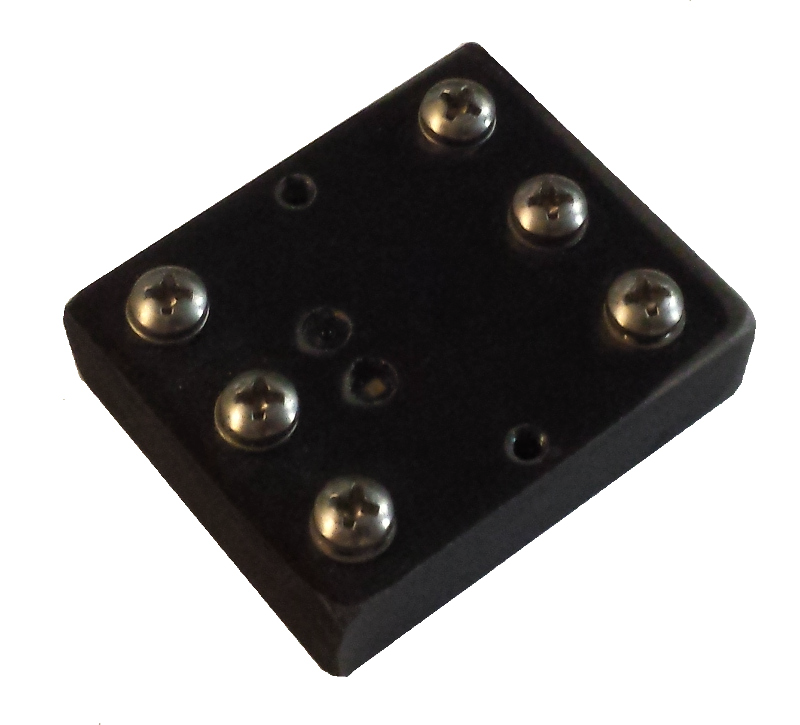

 Model 10724 is a 5-48 VAC interval timer. The solid-state output can switch DC loads up to 5A. The minimum interval time is 100 ms (0.1s). Interval sequences can be started when the timer is powered, at a specific time of day, or when in the input is connected to common by an external switch. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.
Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then sent to an infrared remote programmer, model 9245, through the USB interface. The interval program is then transmitted from the remote to the infrared input on the timer. |
|
|
| Operating Voltage |
|
| Output |
|
| Time |
|
| Features |
|
|
|
|
|
|
| 1 |
$
|
24.00 |
| 5 |
$
|
21.00 |
| 10 |
$
|
20.00 |
| 50 |
$
|
17.00 |
| 100 |
$
|
16.00 |
|
|
|
