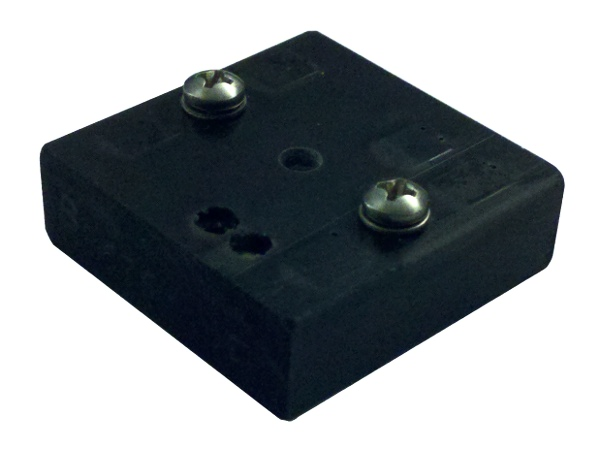

24 - 120V AC and DC Flash Timer
10722  Description
ProductModel 10722 is a 24-120V flash timer. The 10722 flasher is able to switch AC or DC loads up to 5A. Fully programmable ON/OFF times up to 6 different intervals. Minimum time resolution is 1 millisecond. The maximum ON interval is 2 seconds. Factory programming available.

This timer is fully programmable using the Phenix Infrared Programming system. Intervals are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then transferred into an infrared remote programmer, model 9245, through the USB interface. The intervals are then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
24 - 120 AC or DC
Output
Number of Outputs Switches Current Capacity Type
1 AC or DC 5A Inline
Time
Time Base Weekly Clock Clock Source
1ms No Oscillator
Features
External Inputs Battery Backup Max Intervals
0 No 6

Pricing
Quantity Price USD
1 $ 16.00
5 $ 14.00
10 $ 14.00
50 $ 12.00
100 $ 11.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply


Pricing on website may not be current. Please call for Pricing
