30A Output, 5-24 VDC Interval Timer with Weekly Clock
10606  Description

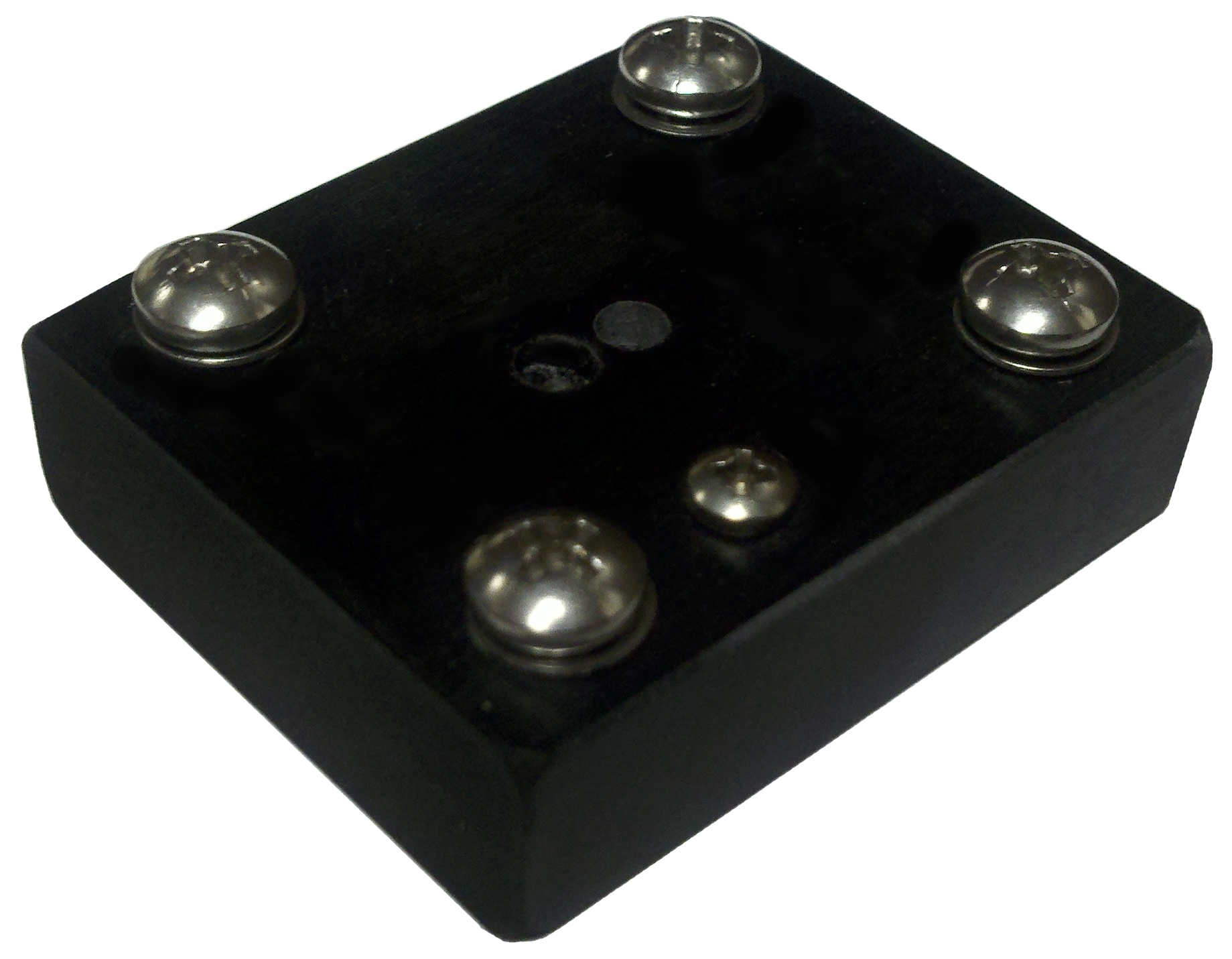

ProductModel 10606 is a 5-24 VDC interval timer with a weekly clock. The solid-state PNP output can switch a DC load up to 30A. The minimum interval time and clock resolution is 1 second. Interval sequences are initiated by clock events. For example, every Monday at 8:00 cycle on and off. The intervals and settings are transferred into the timer through an infrared programmer, providing complete isolation from switching current.

Intervals and input settings are defined using Phenix Programmer Software which is available online for FREE. Timer settings are then read from the computer screen using an infrared remote programmer, model 9211, or through the USB interface, model 9245. The interval program is then transmitted from the remote to the infrared input on the timer.
Specifications
Operating Voltage
Voltage Type
5-24 DC
Output
Number of Outputs Switches Current Capacity Type
1 DC 30A PNP
Time
Time Base Weekly Clock Clock Source
1s Yes Crystal
Features
External Inputs Battery Backup Max Intervals
0 Yes 60

Pricing
Quantity Price USD
1 $ 39.00
5 $ 34.00
10 $ 32.00
50 $ 28.00
100 $ 26.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images

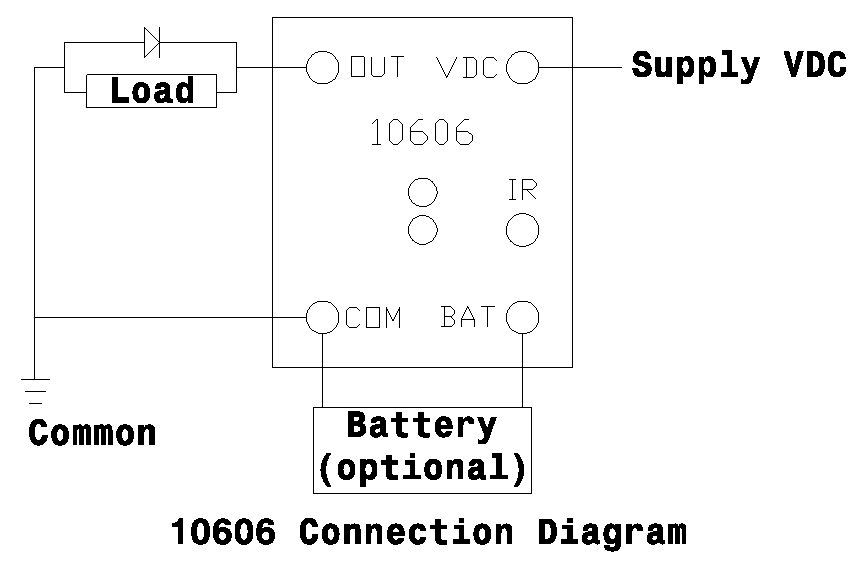

Connection Diagram
Connection Diagram

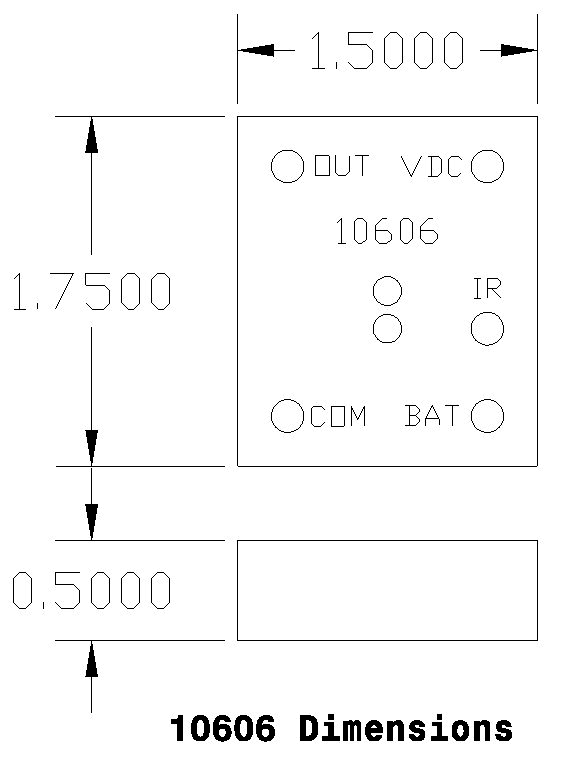

Dimensions
Dimensions



Pricing on website may not be current. Please call for Pricing
