3 - 12 VDC, 2A Micro Motor Controller with Speed Control
9279  Description

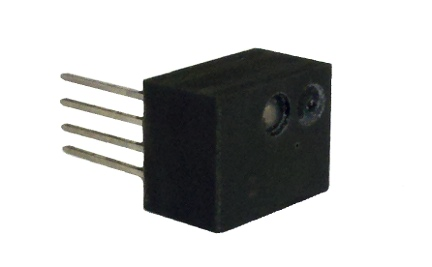

ProductModel 9279 is a 3-12 VDC micro motor controller with speed control. Control 3-12 VDC motors forward and reverse motion. The 9279 can handle motor loads up to 1.5A. The compact size (0.625 x 0.5x 0.0375) is perfect for applications where space is limited. The 9279 is a programmable device utilizing the Phenix Infrared Programming system. The Phenix Programmer Software allows for full customization of the motor controller. The PC software is available for free.

Sample 9279 Program
New Image


A program is a sequence of commands issued to the motor controller. Each row defines a single command. A command consists of the direction the motor will turn, represented by the arrow in the right column; the length of time the motor will be in this condition, defined by the value in the center column; and the motor speed, represents by a percentage in the left column.

Commands are executed in sequence and automatically repeat. In the sample program, the motor will run forward for 5 seconds at 100% speed. Then, travel in reverse for 5 seconds at 75% speed. The 9279 can store up to 32 commands. The programming flexibility allows for this standard hardware to be easily customized to fit almost and motor timing applications.

Operating Voltage (DC) Current
  Model Min Max Max
  9279 A1 3 12 1.5A

Pricing
Quantity Price USD
1 $ 19.00
5 $ 17.00
10 $ 16.00
50 $ 14.00
100 $ 13.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images

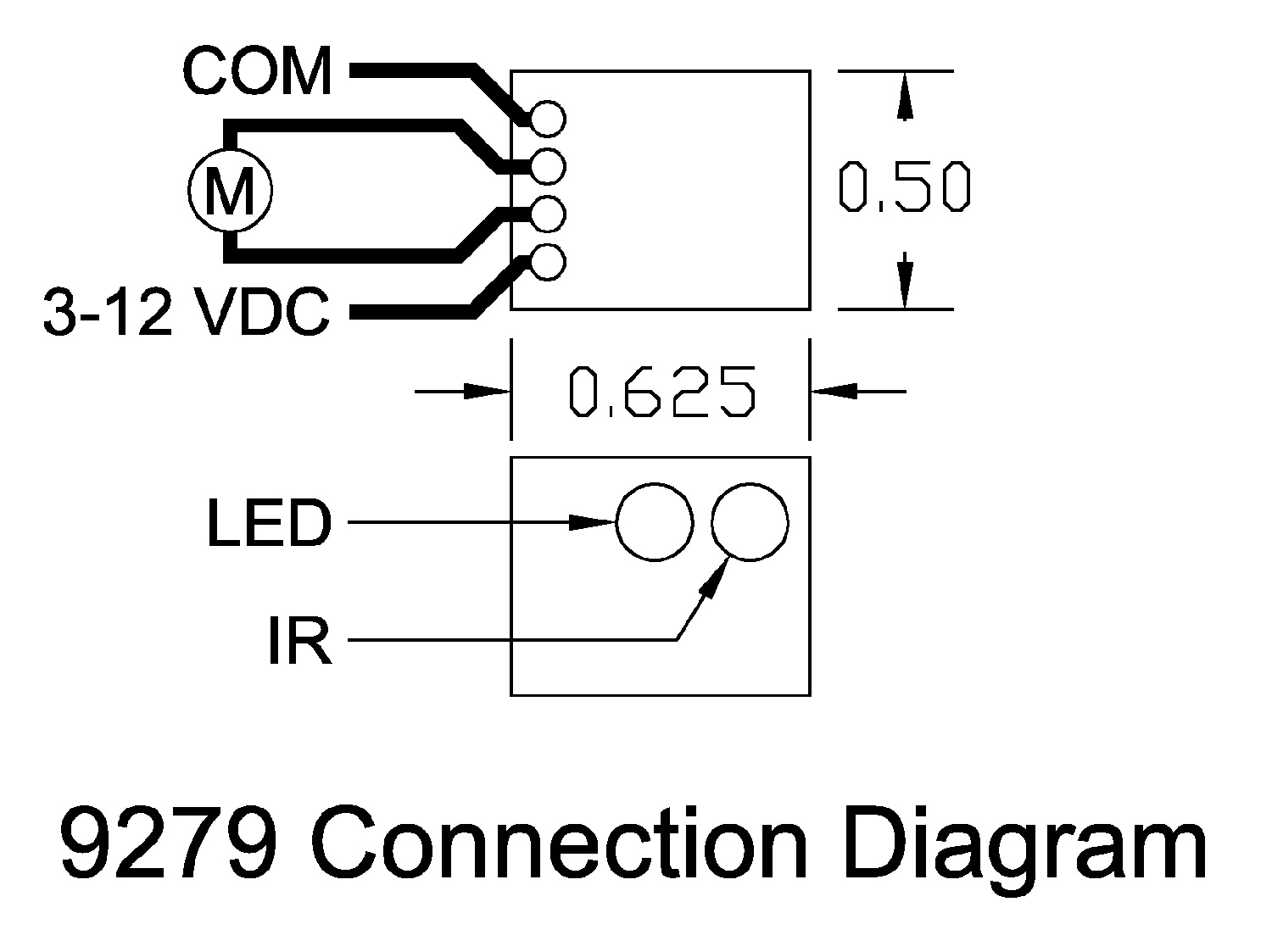

9279 Connection Diagram
9279 Connection Diagram

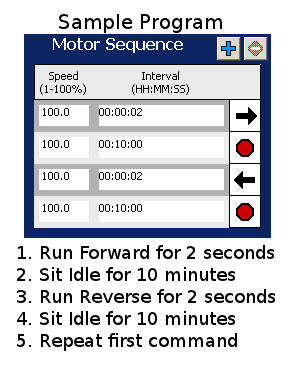

Sample 9279 Program
Sample 9279 Program



Pricing on website may not be current. Please call for Pricing
