The 9616 series is designed with max. current ranges of 25, 50, 100, or 250 A sensing and comes in a 3 phase package. All models have a continuously adjustable trip point and a 30A ouput.
9616  Description

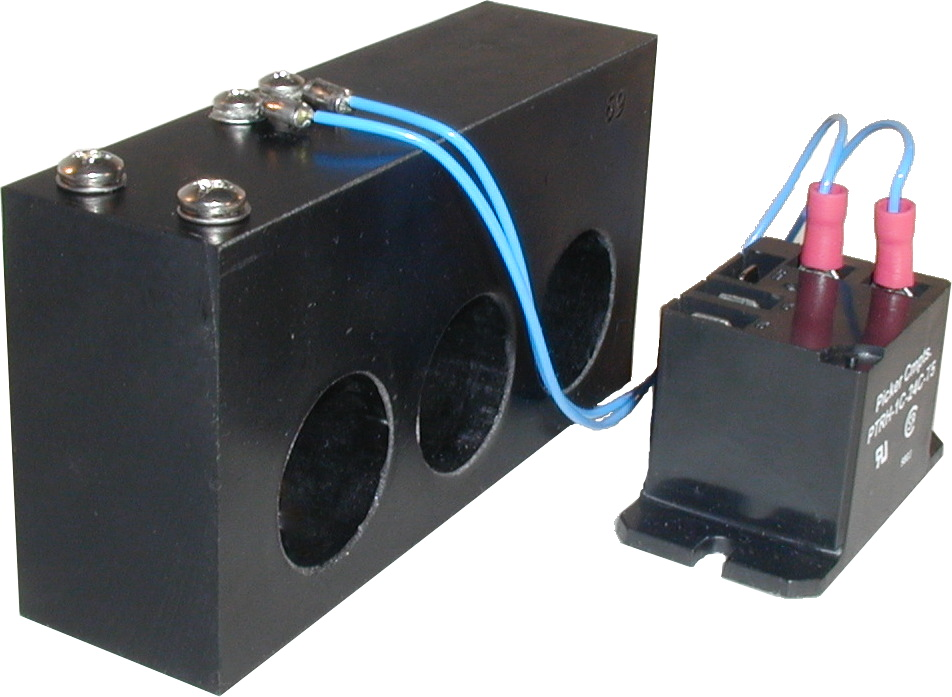

ProductModel 9616 is a low cost current switch with maximum currents of 25A, 50A, 100A, or 250 A. This three phase current sensor comes with a 30A zero crossing mechanical relay. The relay has .250 male QC terminals for COM, NO, and NC. The current trip point is continuously adjustable by a 25 turn adjustment screw.
Features
  • Adjustable Trip
  • 30A Output
  • Encapsulated to prevent environmental and physical damage
  • Accommodate wires up to 7/8 inch
  • Currents up to 250A
  • Outputs are isolated from monitored lines
Specifications
Operating Voltage
Min Type
120 VAC
Maximum Output Current 30A
Sensing Range
Min Max Units
0
0
0
0
25
50
100
250
Amps
Number of Phases 3
Maximum Wire Size
7"
8
Trip Point Adjustable
Features Large Wire Size
30A Output

Sensing Range (Amps)
  Model Phases Min Max
  9616 C1 3 0 25
  9616 C2 3 0 50
  9616 C3 3 0 100
  9616 C4 3 0 250

Pricing
Quantity Price USD
1 $ 71.00
5 $ 62.00
10 $ 58.00
50 $ 51.00
100 $ 48.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads


Pricing on website may not be current. Please call for Pricing
