Low cost, open core, adjustable trip AC current switch
9642  Description
ProductModel 9642 is an open core, low cost AC current switch with maximum current of 5A. The output switches from high to low on trip. The current trip point is continuously adjustable from 1A to 5A. The open core is perfect for applications where sensing wires can not be passed through.
Features
  • Open Core
  • AdjustableTrip
  • Isolated Output
  • Solid-state
Specifications
Operating Voltage
Min Type
5, 12, 24 VDC
Maximum Output Current 200mA
Sensing Range
Min Max Units
1 5 Amps
Number of Phases 1
Maximum Wire Size
7"
8
Trip Point Adjustable
Features Open core
Solid-state

Pricing
Quantity Price USD
1 $ 22.00
5 $ 20.00
10 $ 18.00
50 $ 16.00
100 $ 15.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images
9642
9642

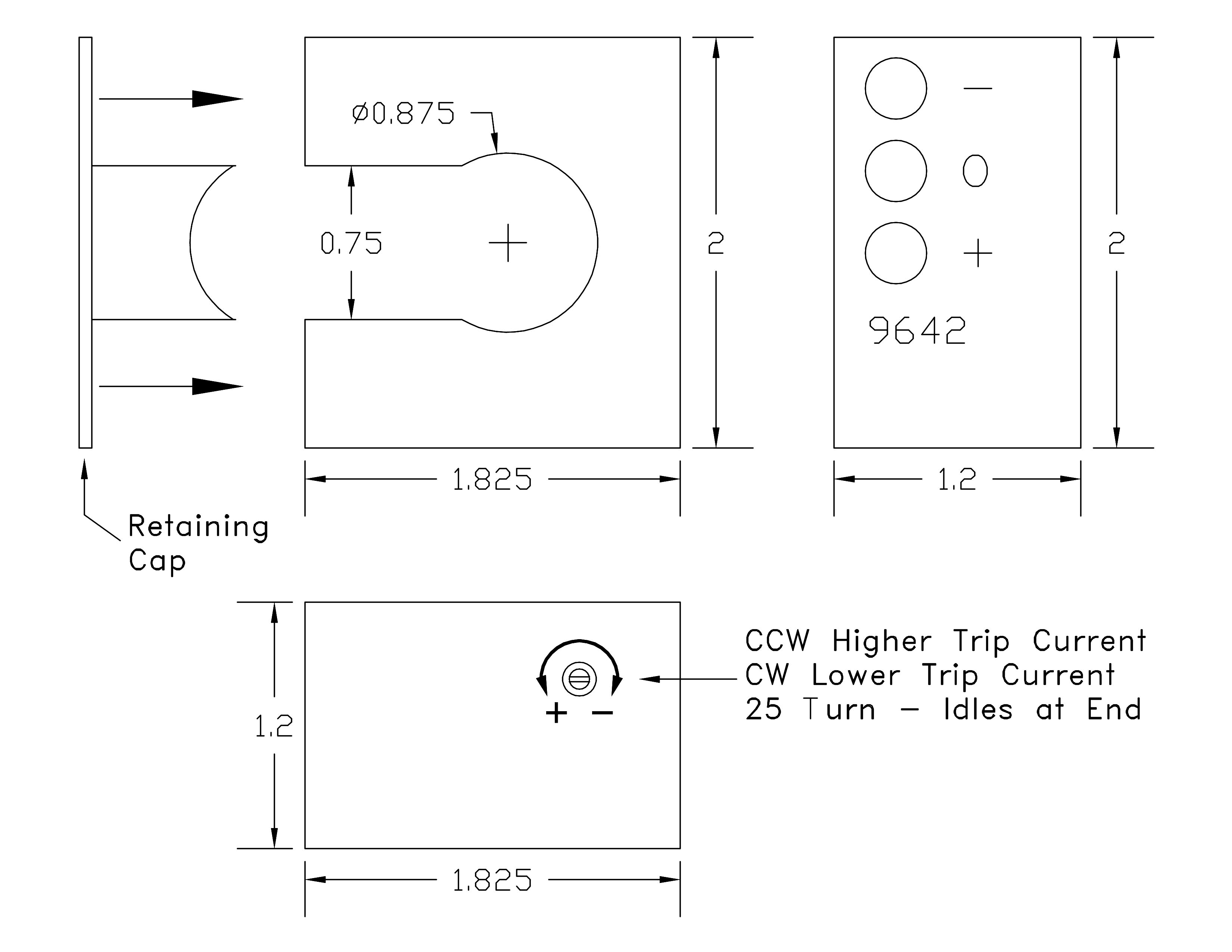

Dimensions
Dimensions



Pricing on website may not be current. Please call for Pricing
