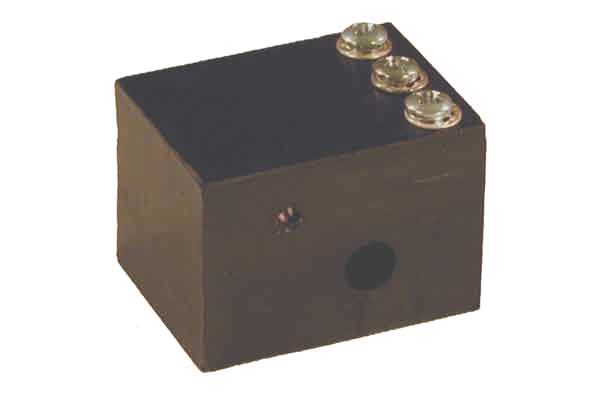

25A, 50A, or 100A Low Cost Signal Phase Current Sensor
9153  Description
ProductModel 9153 is a small, low cost current switch with maximum currents of 25A, 50A, or 100 A. This single phase current sensor goes from high to low on trip. The current trip point is continuously adjustable.
Specifications
Operating Voltage
Min Max Type
3 36 VDC
Maximum Output Current 18mA
Sensing Range
Min Max Units
0.5 100 Amps
Number of Phases 1
Maximum Wire Size
3"
8
Trip Point Adjustable
Features Small Size

Sensing Range (Amps)
  Model Phases Min Max
  9153 A1 1 0.5 25
  9153 A2 1 0.5 50
  9153 A3 1 0.5 100

Pricing
Quantity Price USD
1 $ 16.00
5 $ 14.00
10 $ 14.00
50 $ 12.00
100 $ 11.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Document 9153 Data Sheet


Pricing on website may not be current. Please call for Pricing
