220VAC powered AC Current Sensor
10871  Description

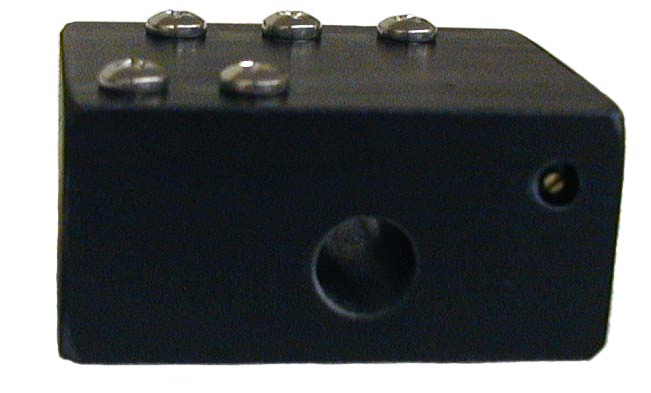

ProductModel 10871 is a single phase, AC current switch designed for industrial applications. The 10871 has an internal relay with isolated contacts (form 1C contacts). The 10871 requires a 220VAC supply voltage. The current trip point is continuously adjustable from 500 mA to 20A. The 10871 has a 3/8 inch diameter hole for sensing AC currents through the 10871.
Features
  • Encapsulated to prevent environmental and physical damage
  • Accommodate wires up to 3/8 inch
  • Outputs are isolated from monitored lines
Specifications
Operating Voltage
Min Type
220 VAC
Maximum Output Current 10A
Sensing Range
Min Max Units
0.5 20 Amps
Number of Phases 1
Maximum Wire Size
3"
8
Trip Point Adjustable
Features 220VAC powered
Senses AC
Internal Relay
Adjustable Trip

Pricing
Quantity Price USD
1 $ 22.00
5 $ 20.00
10 $ 18.00
50 $ 16.00
100 $ 15.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads


Pricing on website may not be current. Please call for Pricing
