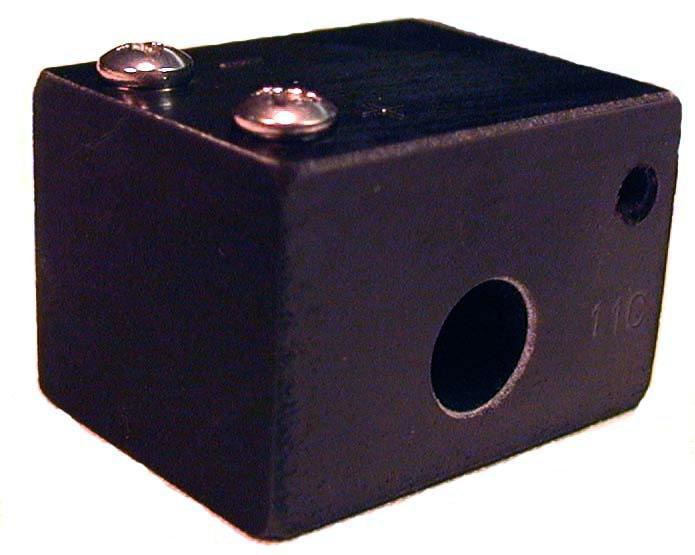

Low Cost, Single Phase, Two Wire Current Sensor
10624  Description
ProductModel 10624 is a small, low cost AC current switch. This current sensor is single phase and has a two wire connection. The output goes from low current to high current on trip and is designed to connect to a PLC. The current trip point is continuously adjustable. The 10624 is designed for industrial applications and can accommodate wires up to 3/8 inch diameter.
Features
  • Encapsulated to prevent environmental and physical damage
  • Accommodate wires up to 3/8 inch
  • Outputs are isolated from monitored lines
Specifications
Operating Voltage
Min Max Type
3 30 VDC
Maximum Output Current 100mA
Sensing Range
Min Max Units
0.5
0.5
0.5
10
25
50
Amps
Number of Phases 1
Maximum Wire Size
3"
8
Trip Point Adjustable
Features Small, Low Cost Connect to PLC

Sensing Range (Amps)
  Model Sensing Cores Min Max
  10624 A2 1 0.5 10
  10624 A3 1 0.5 25
  10624 A4 1 0.5 50

Pricing
Quantity Price USD
1 $ 18.00
5 $ 16.00
10 $ 15.00
50 $ 13.00
100 $ 12.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Downloads
Images
10624I_2
10624I_2



Pricing on website may not be current. Please call for Pricing
