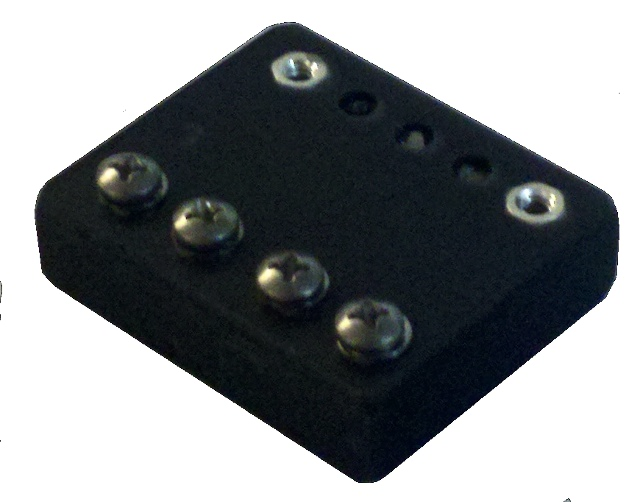

5 - 24 VDC 4G, 12G XY Accelerometer
10729  Description
ProductModel 10729 is a 5-24 VDC low cost g-force trip sensor. When a programmable g-force threshold is reached, a photo isolated output is pulled down(to common).

Acceleration is measured on two axis and the magnitude of the acceleration is compared to the programmable threshold. The XY axis sensing plane is perpendicular to the top side (terminal side) of the device.

The threshold and axis plane are both set using the Phenix Programmer Software, which is available online for FREE. The software sets the threshold and calibrates the sensing plane. The settings are then transferred from the computer to device using a USB remote programer, model 9245. The 10729 receives the settings from the remote through the infrared input.

Pricing
Quantity Price USD
1 $ 39.00
5 $ 34.00
10 $ 32.00
50 $ 28.00
100 $ 26.00
Pricing on website may not be current.
Please call for current prices.
S&H and $25 Minimum Order Apply
Images

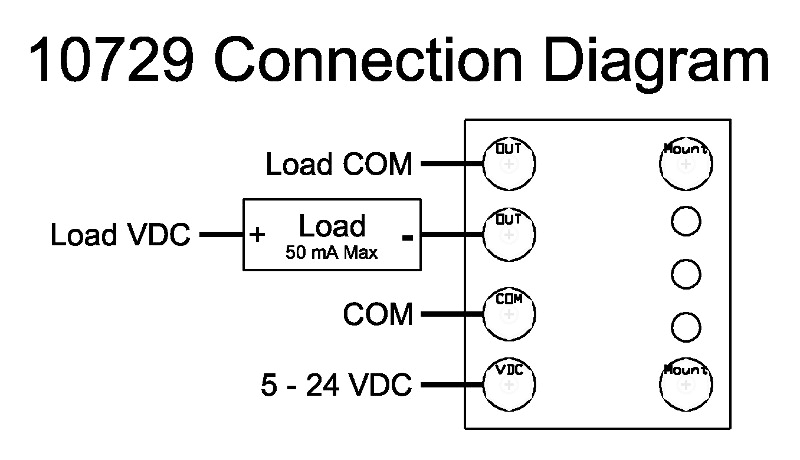

10729 Connection Diagram
10729 Connection Diagram

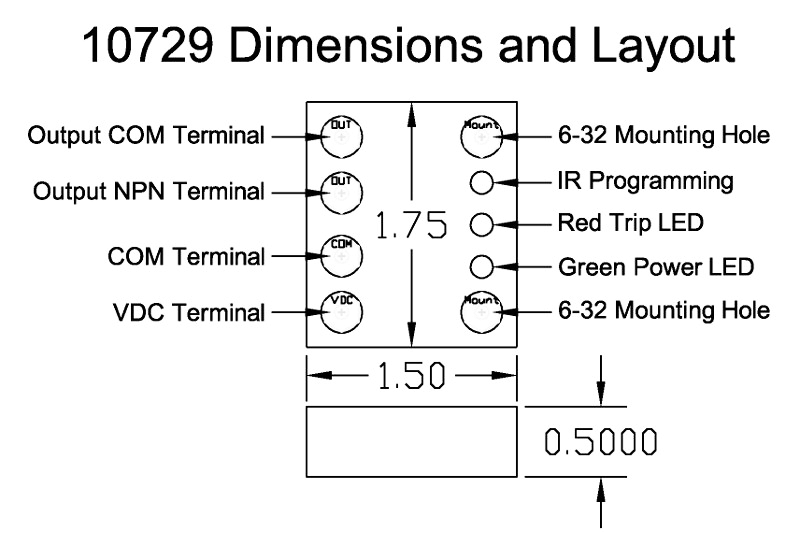

10729 Dimensions and Layout
10729 Dimensions and Layout

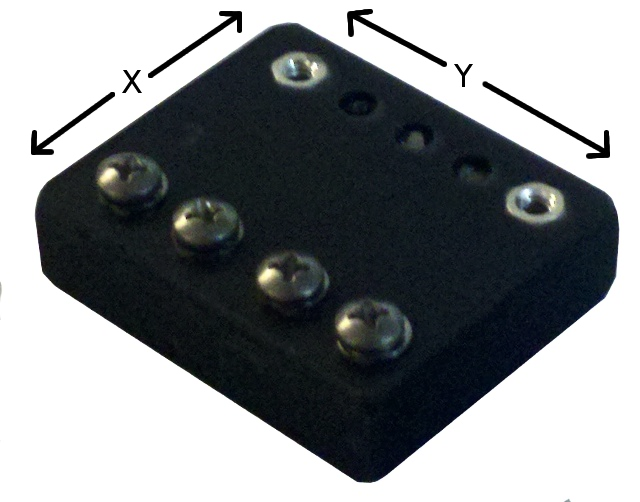

10729 XY Axis
10729 XY Axis



Pricing on website may not be current. Please call for Pricing
